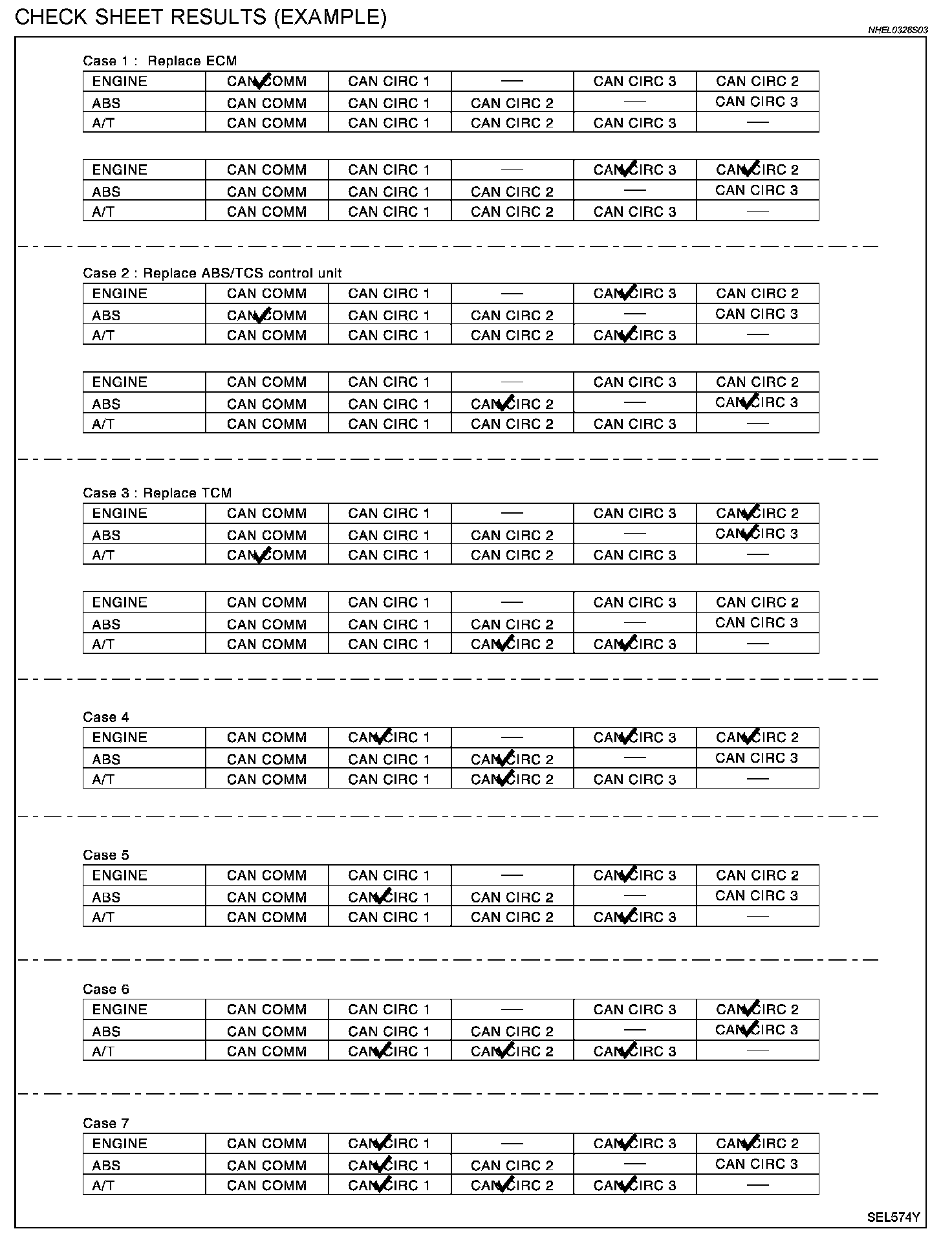

Check Sheet Results (Example)

Check Sheet Results (Example)


NOTE: If "NG" is displayed on "CAN COMM" for the diagnosed control unit, replace the control unit.

INSPECTION
Proceed trouble diagnosis according to the check sheet results (example).
Case 1: Replace ECM.
Case 2: Replace ABS/TCS control unit.
Case 3: Replace TCM.
Case 4: Check ECM Circuit. Refer to "ECM CIRCUIT CHECK".
Case 5: Check ABS/TCS control unit Circuit. Refer to "ABS/TCS CONTROL UNIT CIRCUIT CHECK".
Case 6: Check TCM Circuit. Refer to "TCM CIRCUIT CHECK".
Case 7: Check CAN communication Circuit. Refer to "CAN COMMUNICATION CIRCUIT CHECK".
