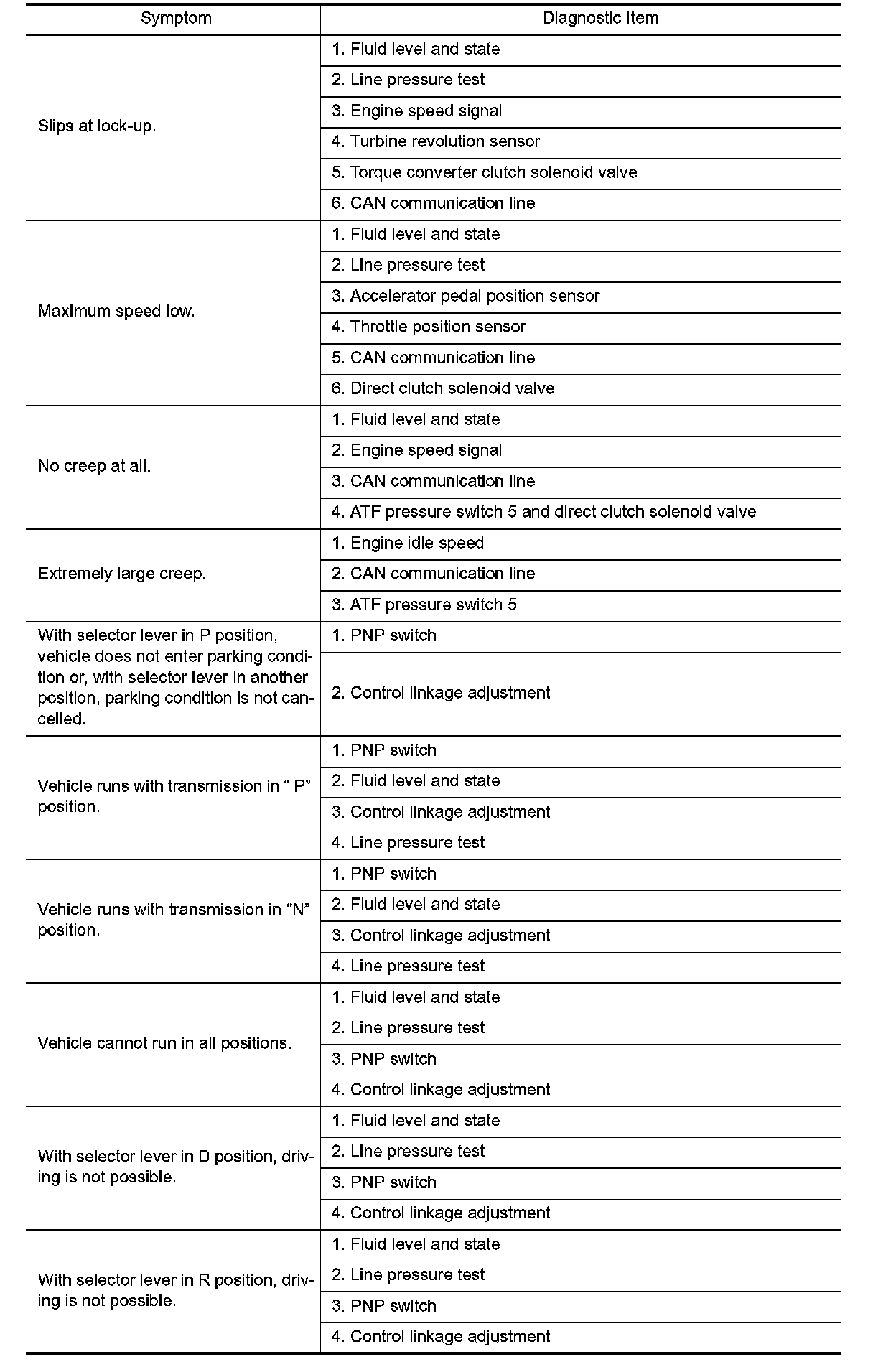

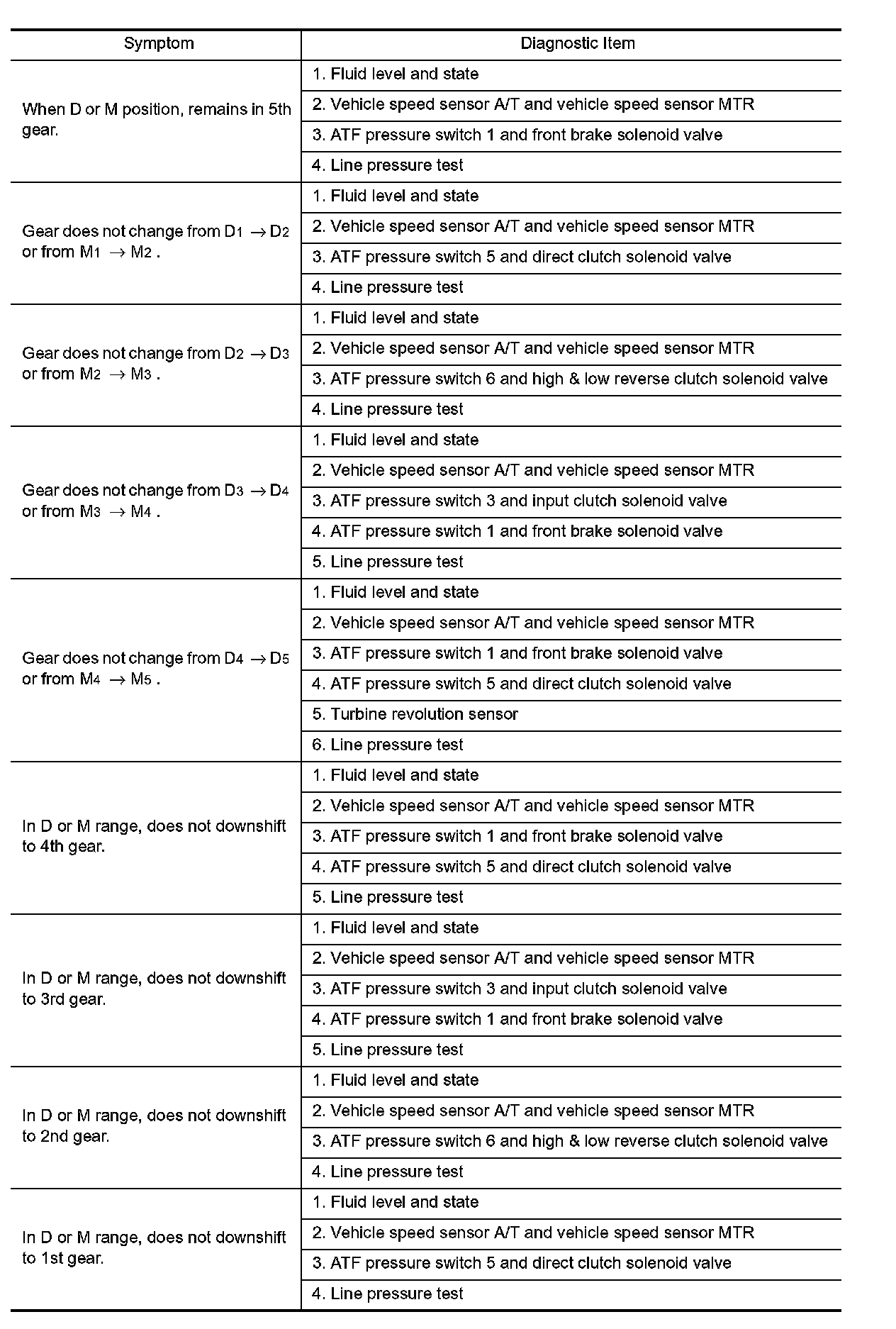

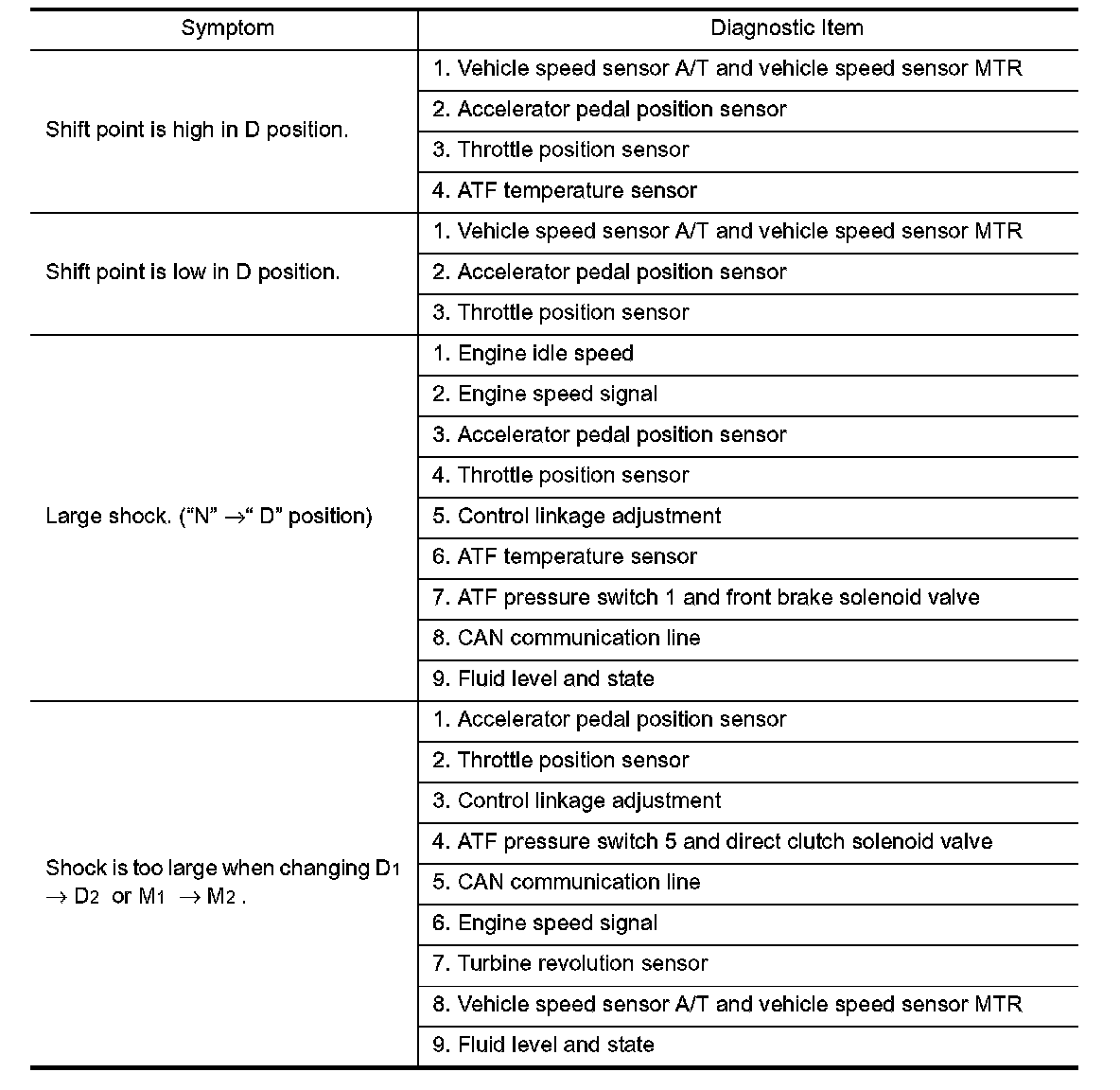

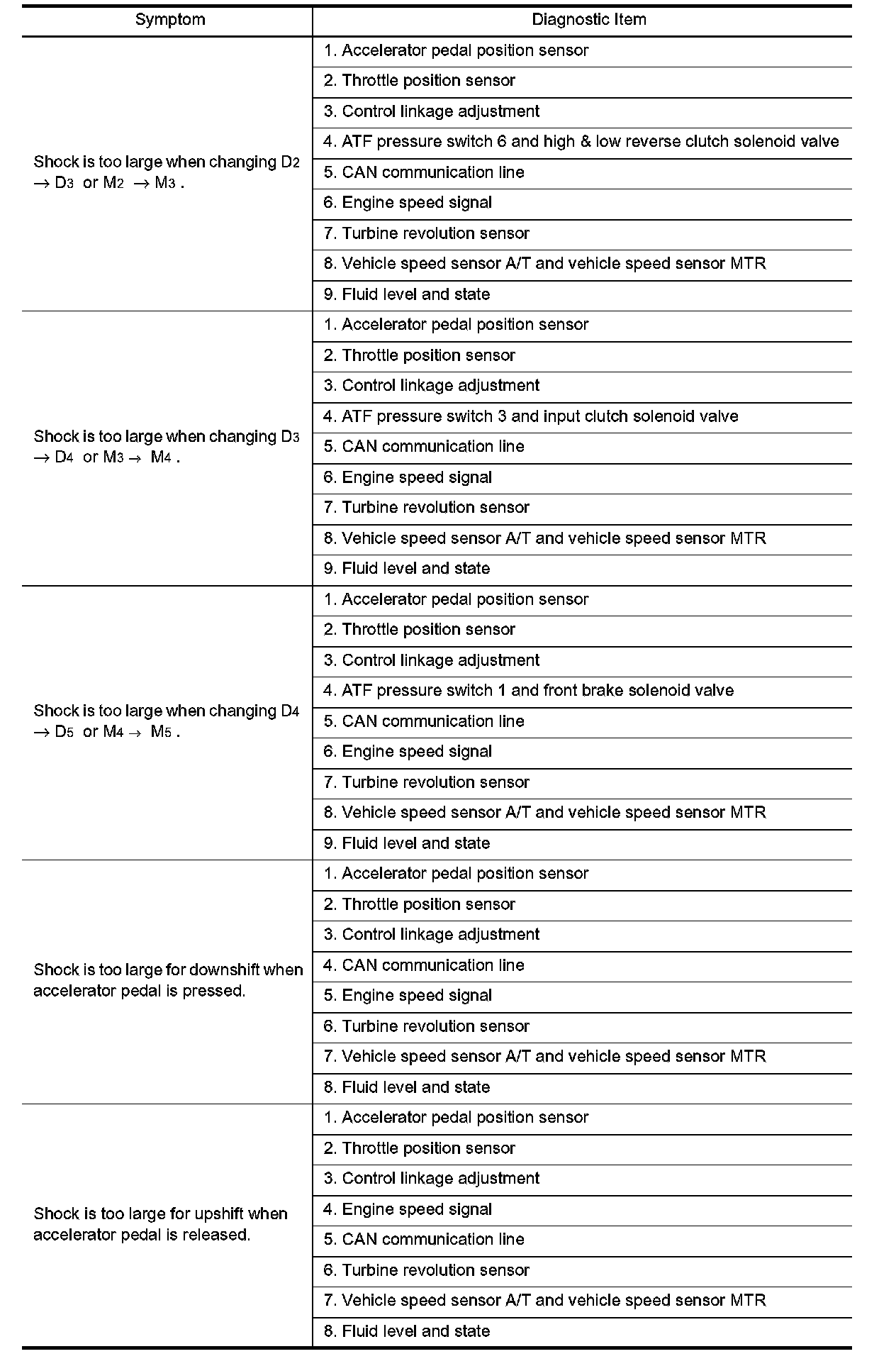

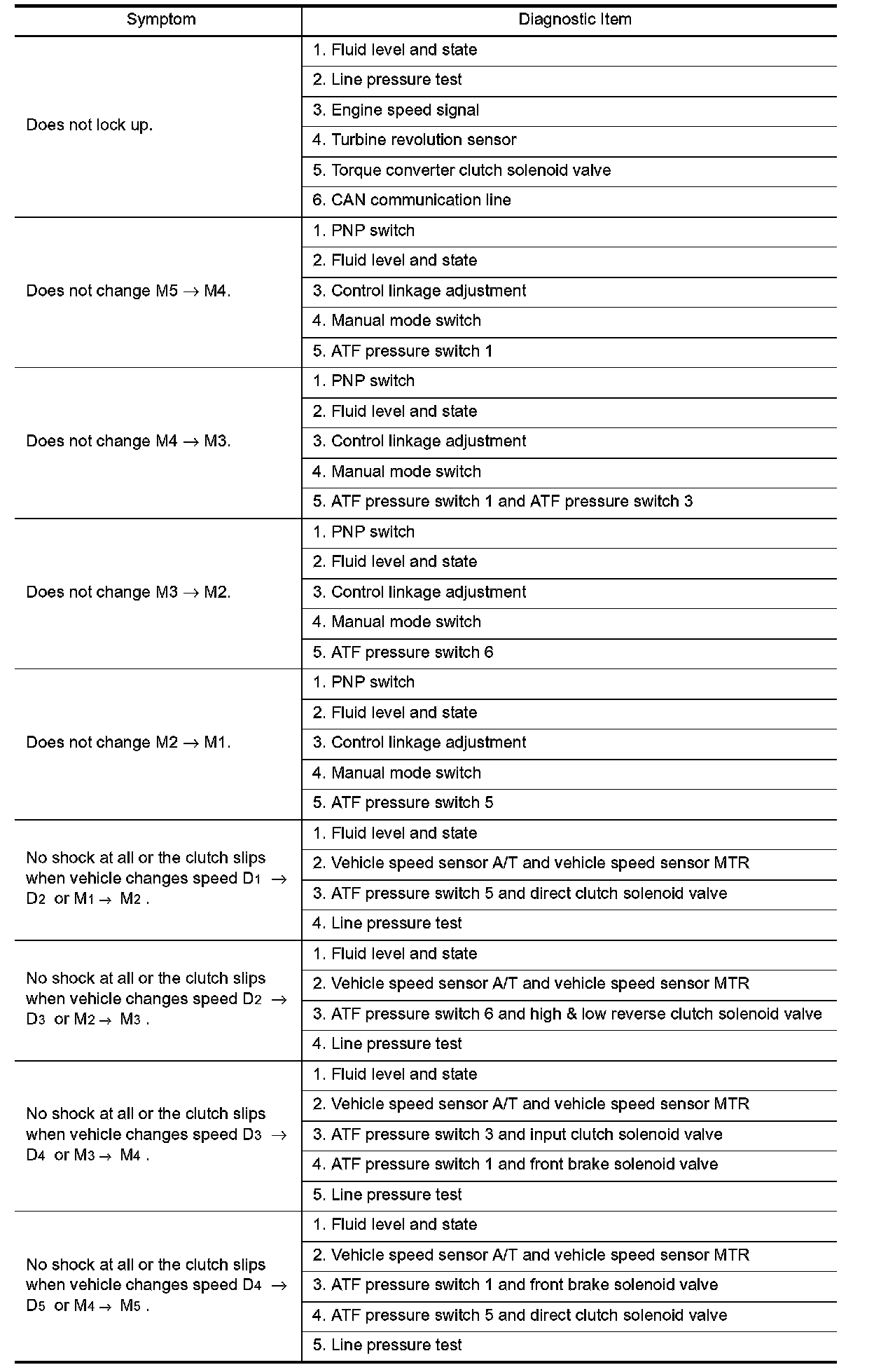

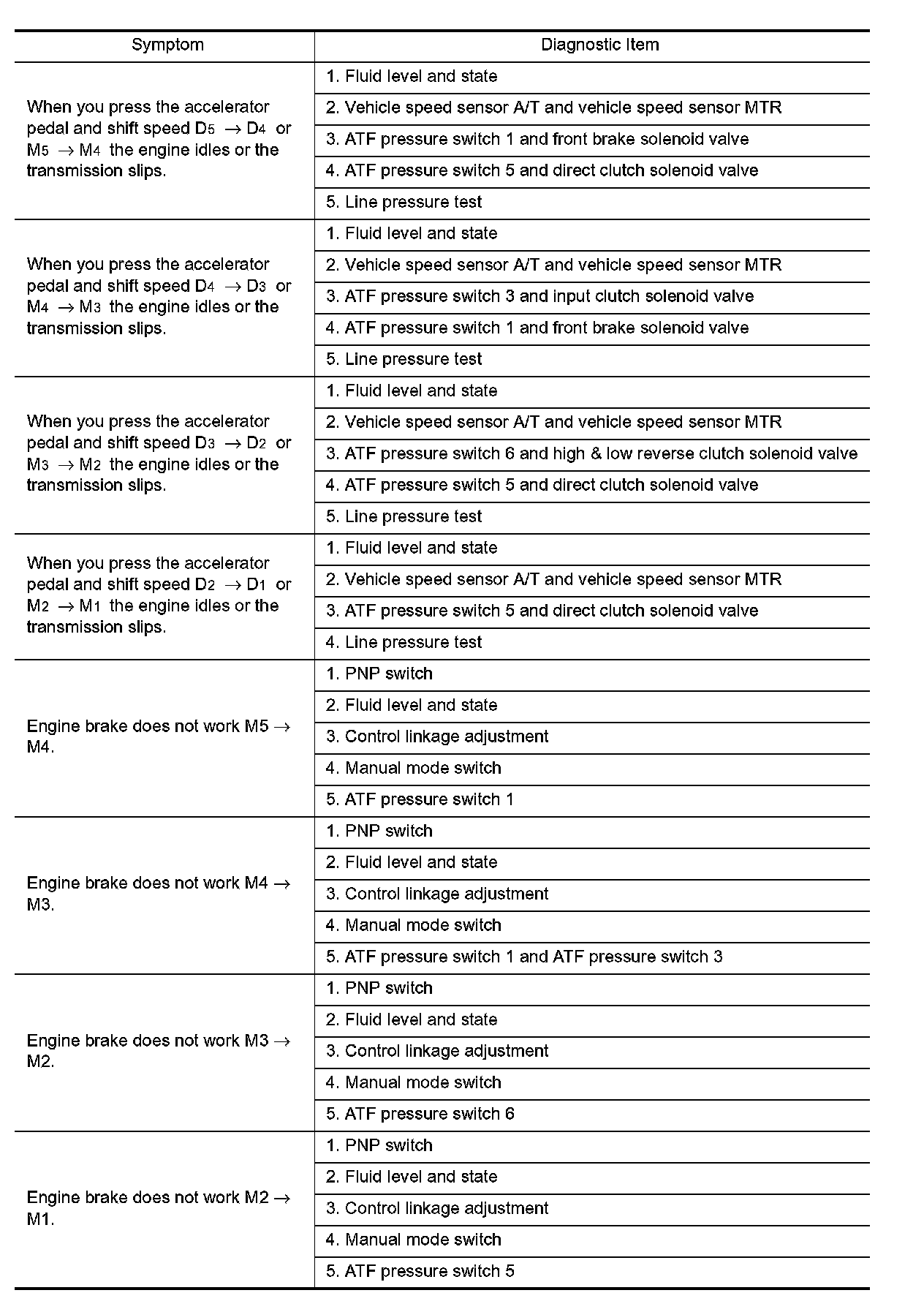

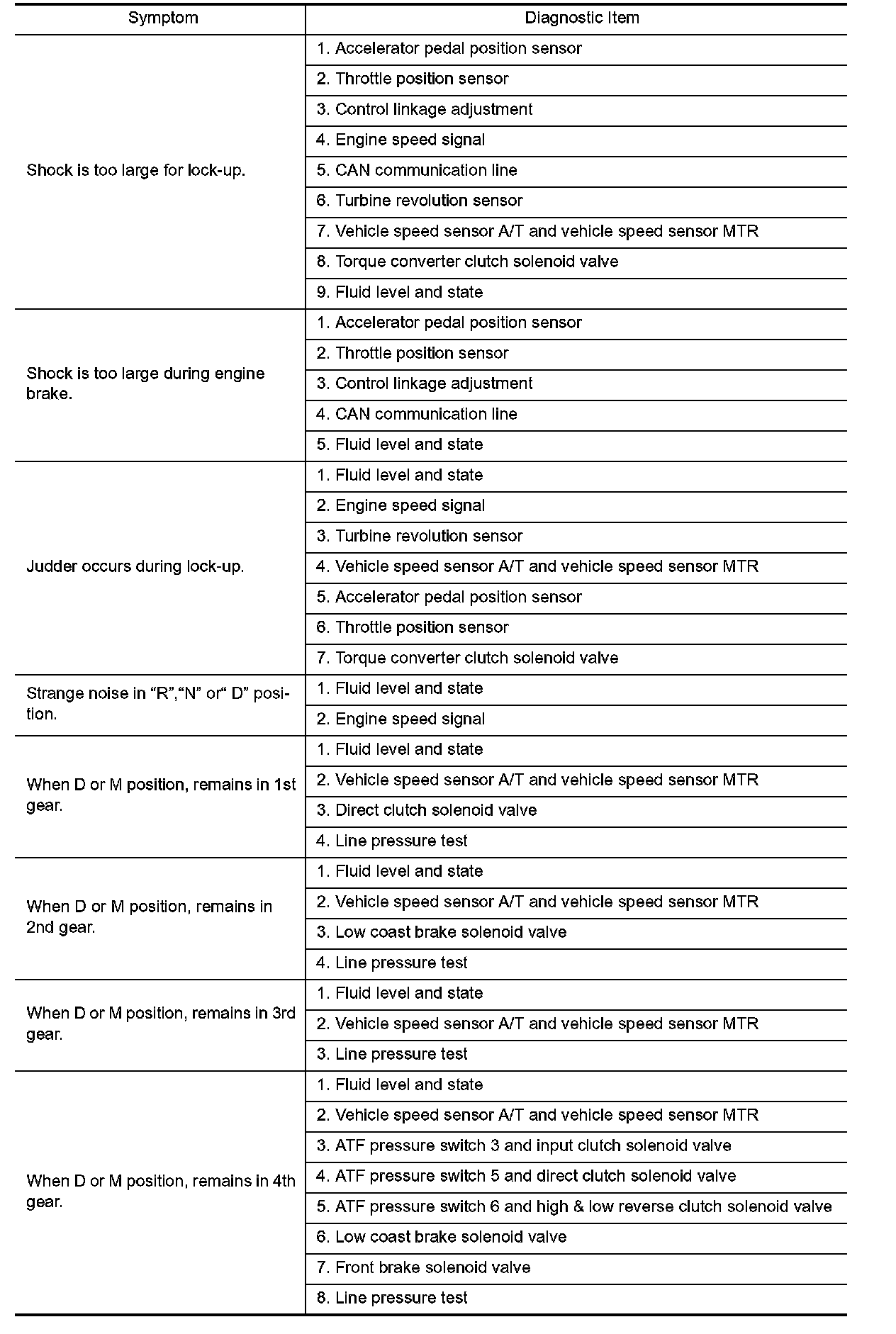

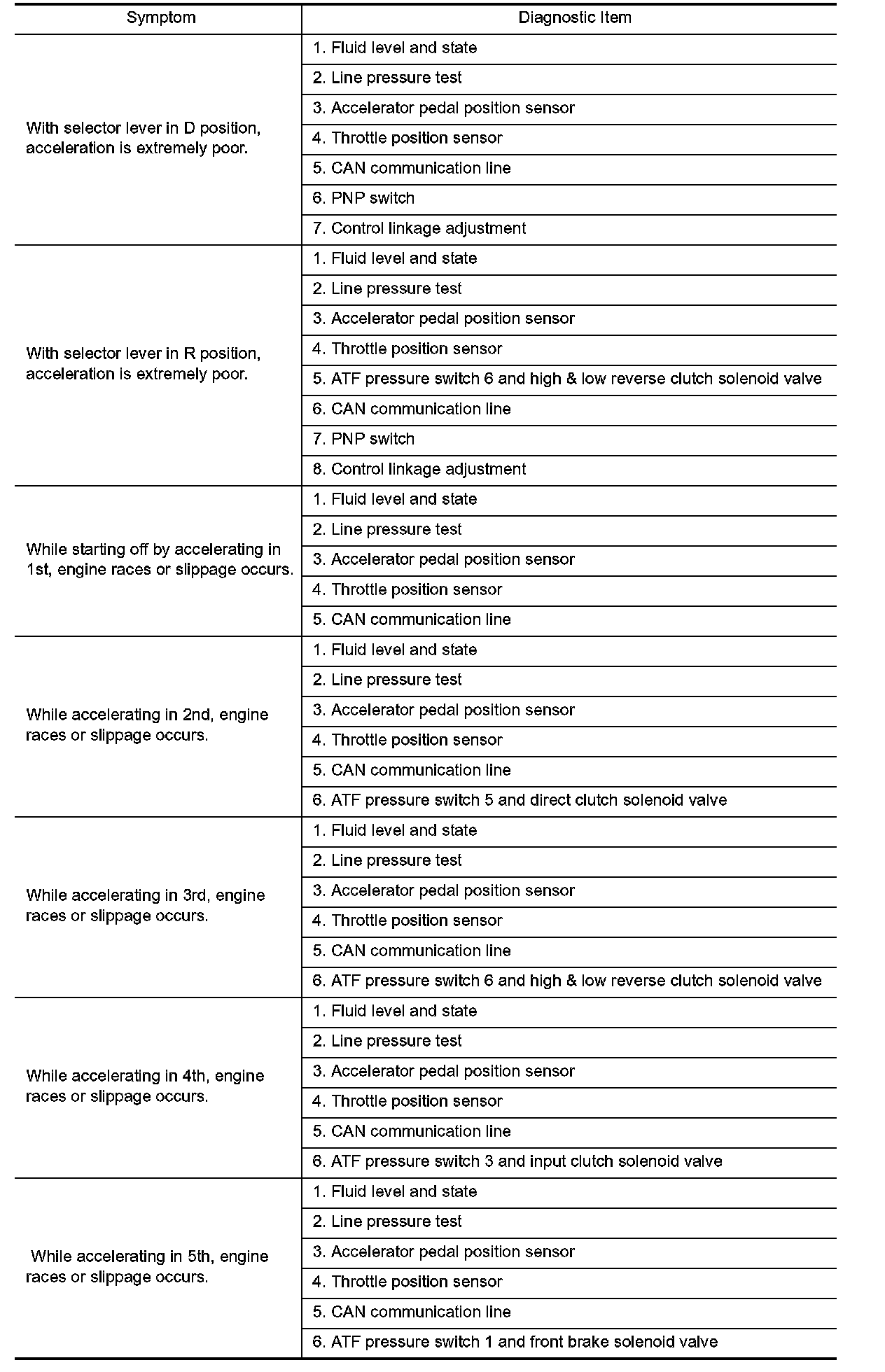

Symptom Chart

Symptom Chart






























The diagnostics item numbers show the sequence for inspection. Inspect in order from Item 1.

CAUTION:
^ If any malfunction occurs in the RE5RO5A transmission, replace the transmission assembly.
^ Condition for "on vehicle" only.
