Navigation System Schematics

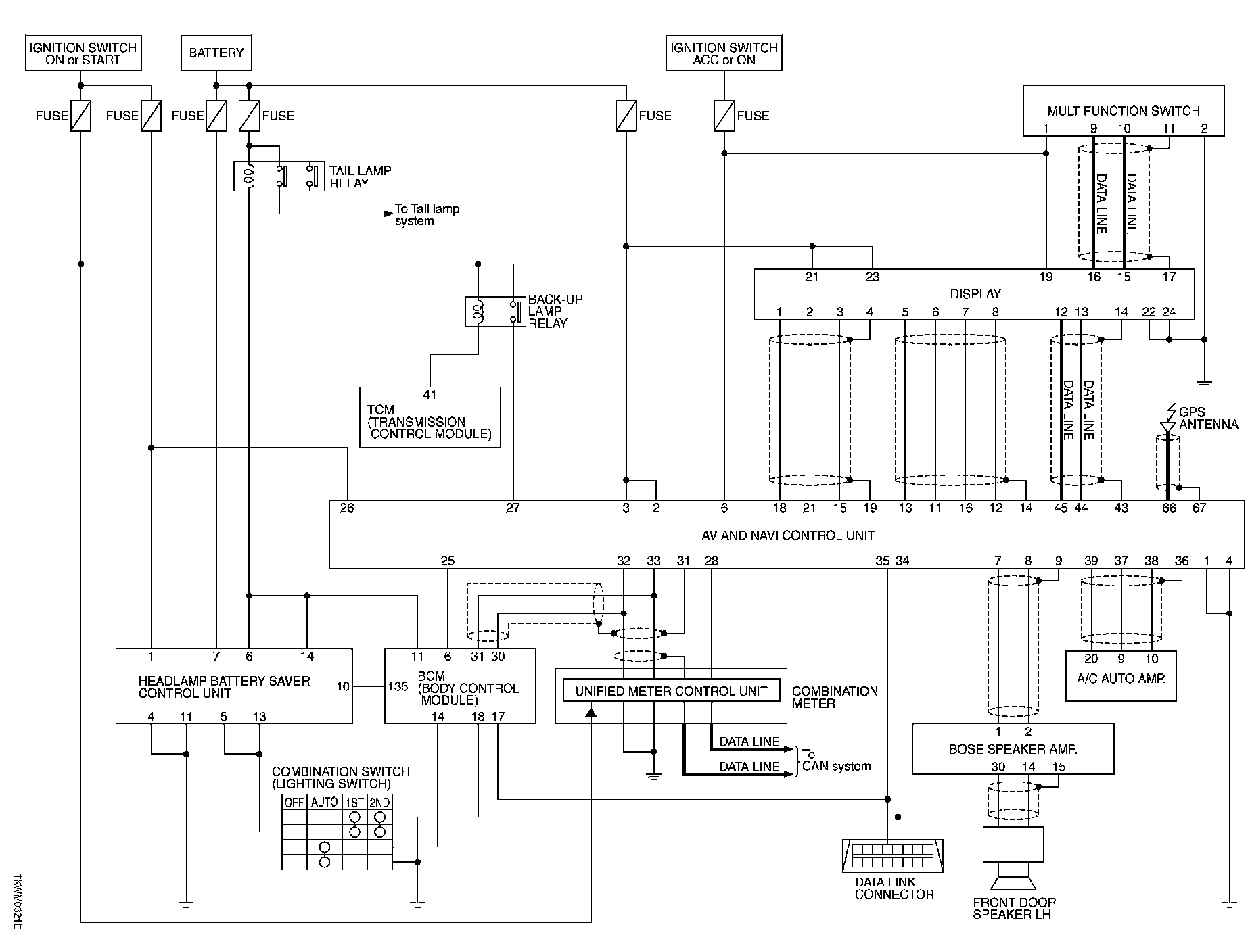

Navigation System Schematic (AV-NAVI):

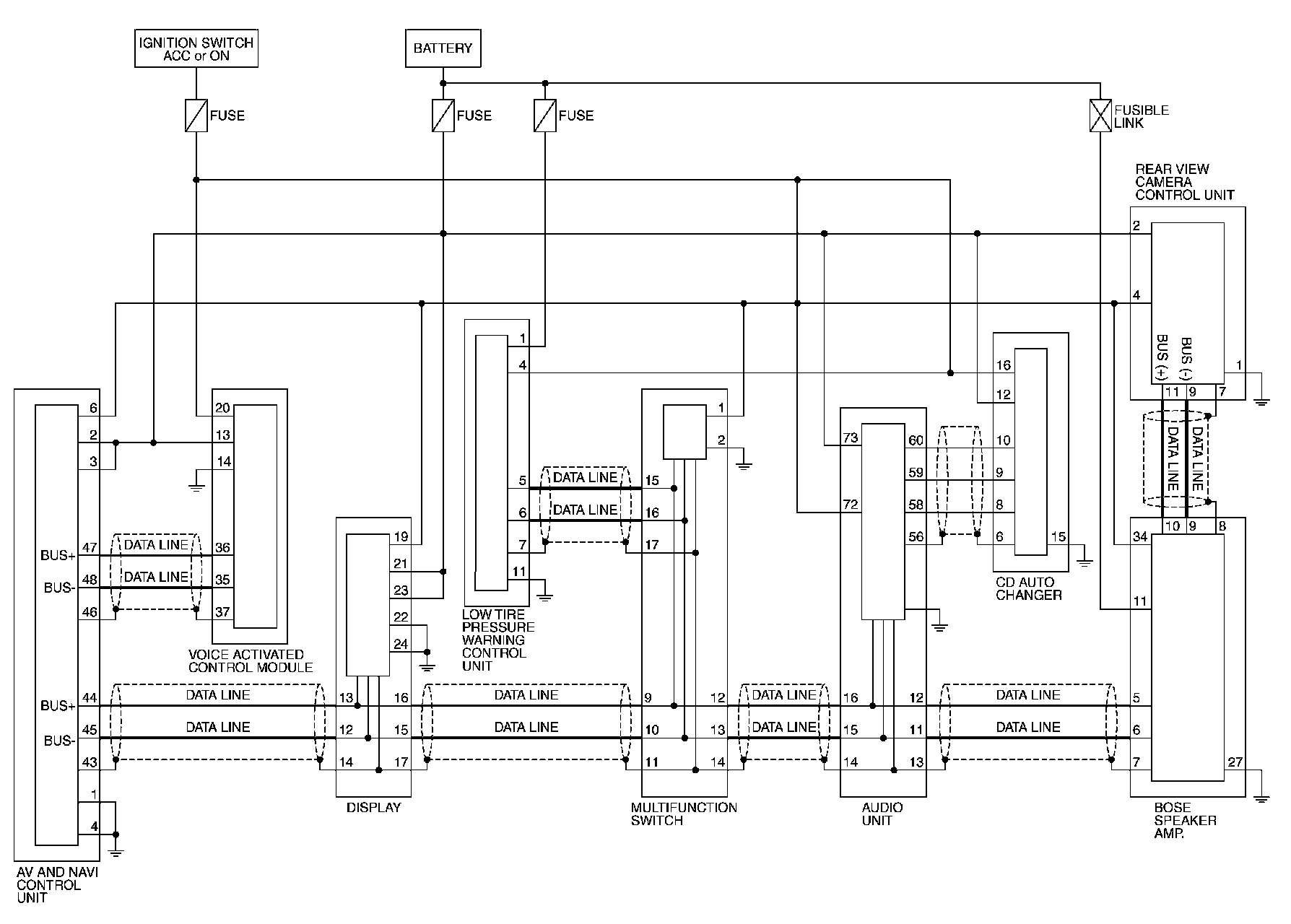

Navigation System Schematic (AV-COMM):
