M45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

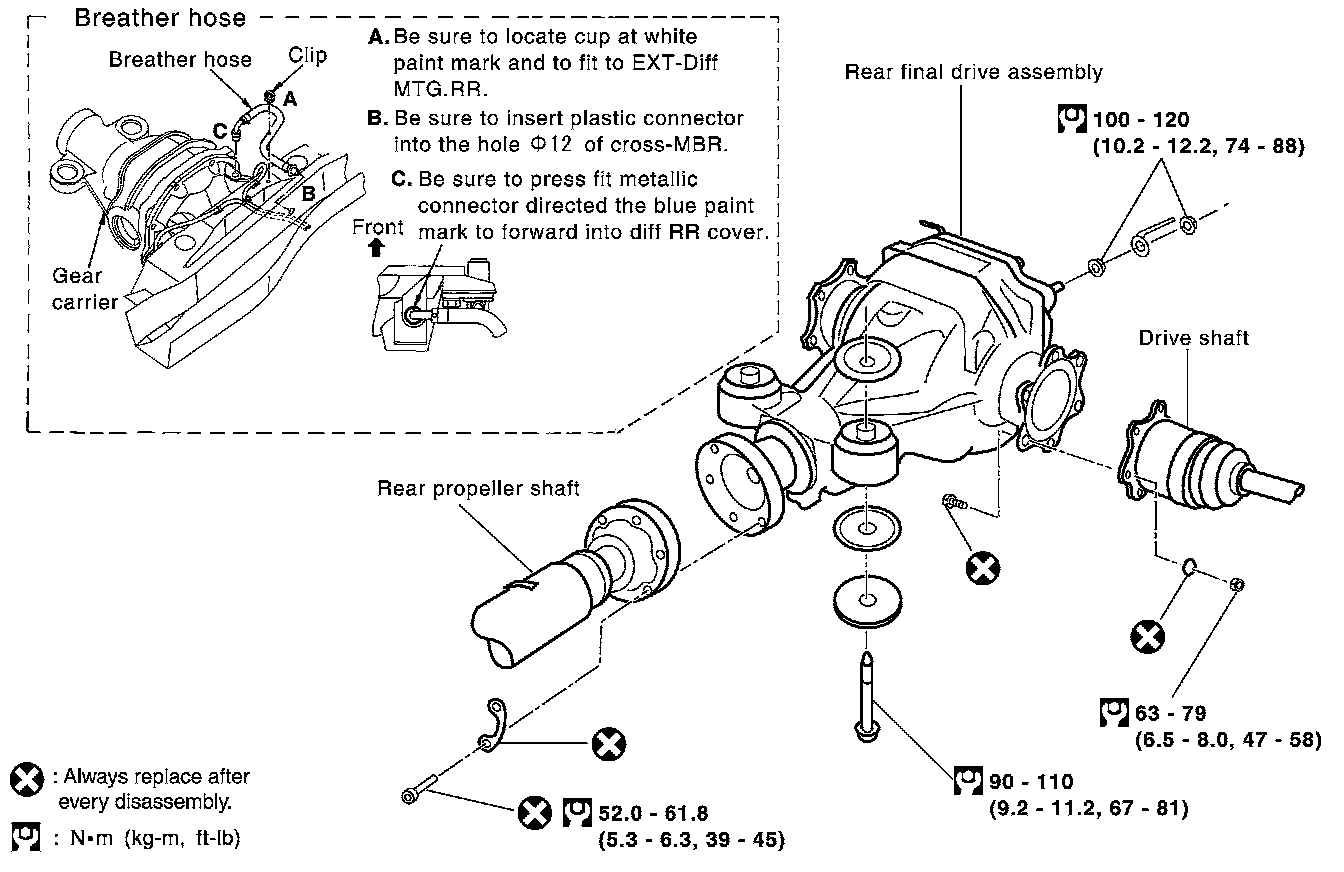

Differential Assembly
Differential Assembly

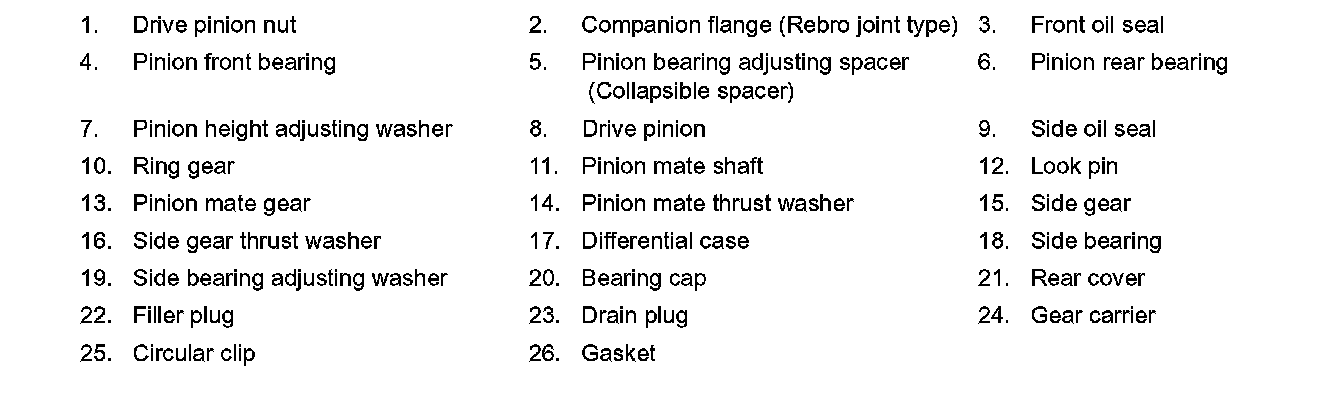

Components

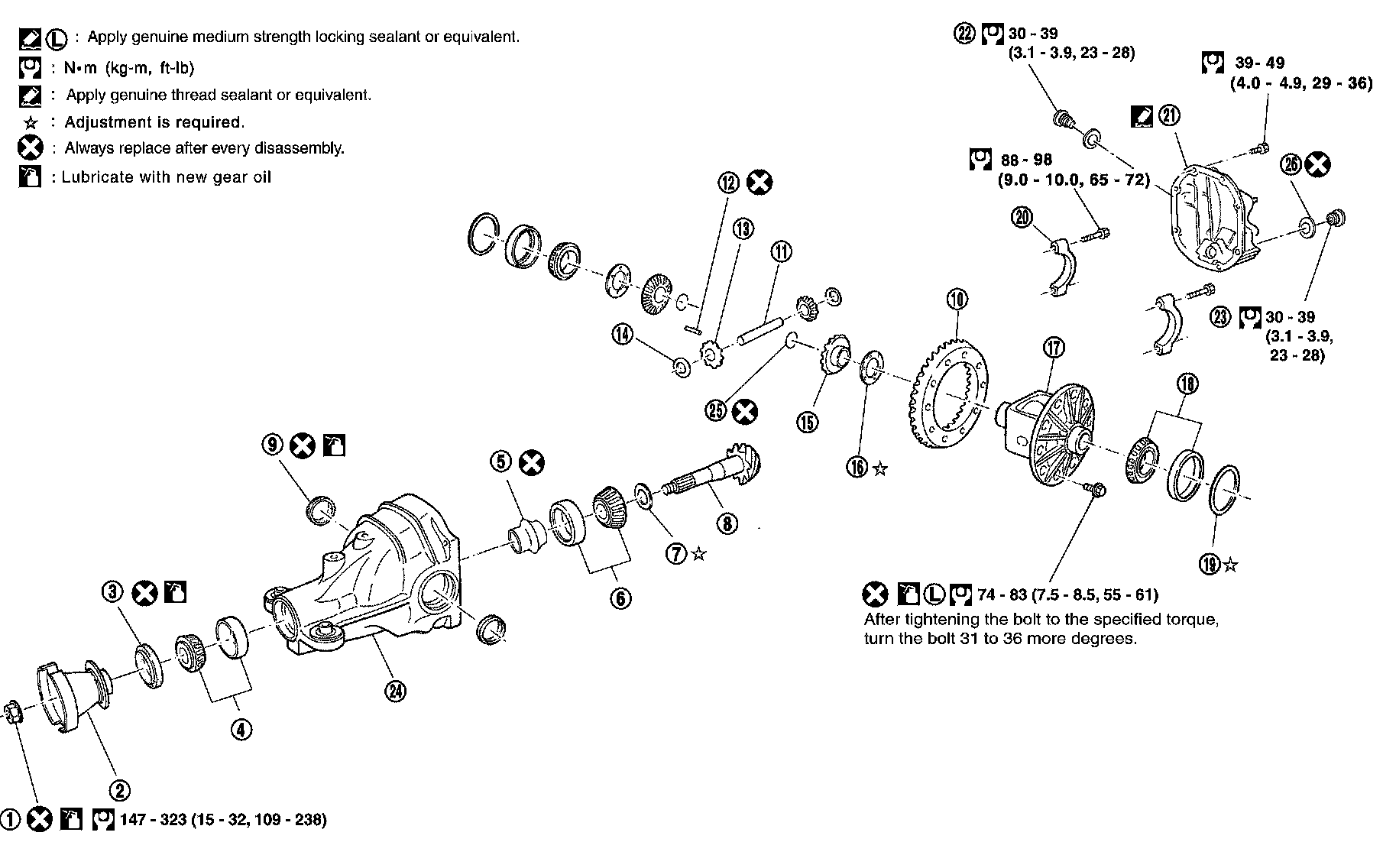

R200 2-PINION
