Driver's Seat Control Unit Schematic
Driver's Seat Control Unit Schematic

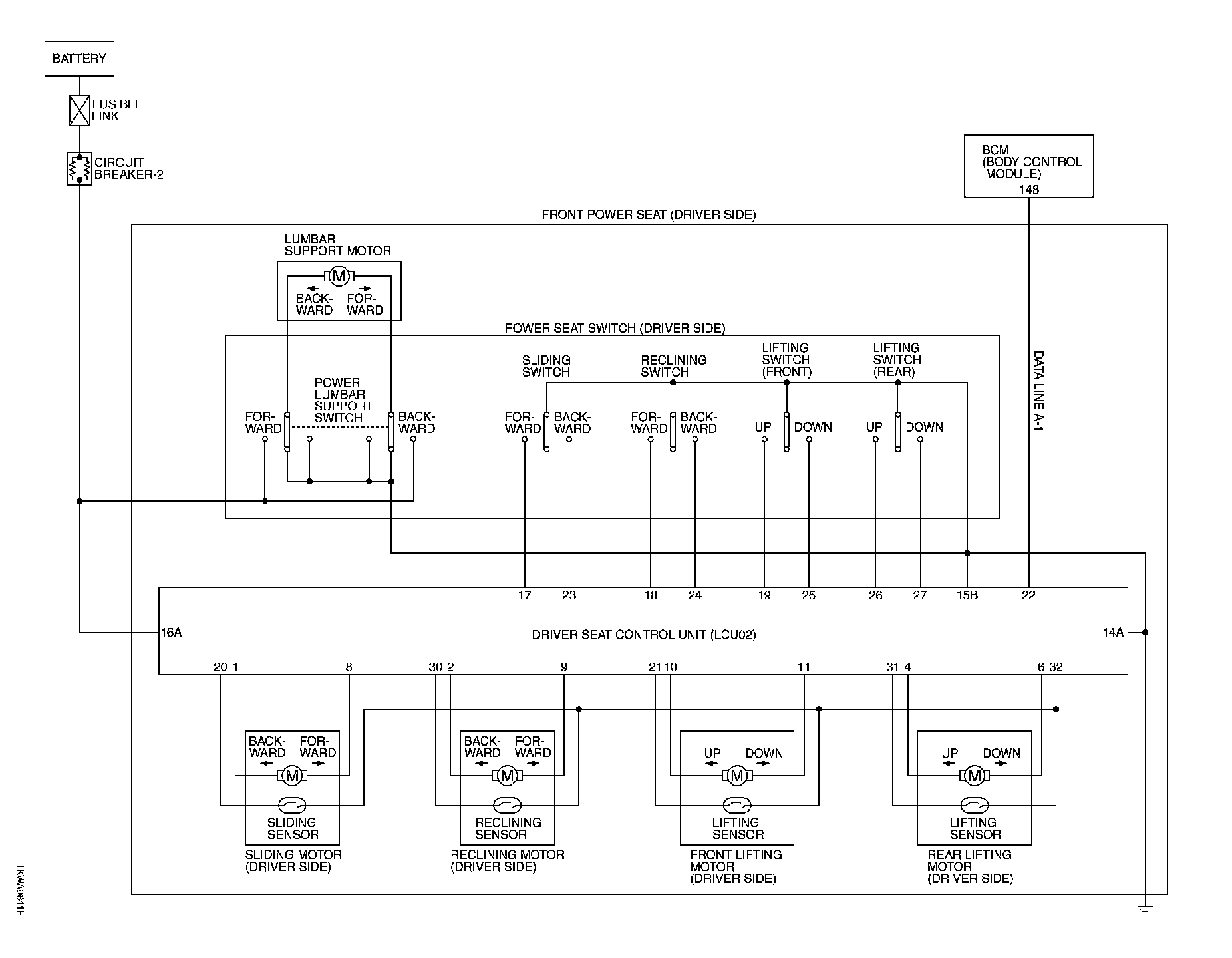

Driver's Seat Control Unit Schematic:
