Navigation System Schematics
Navigation System Schematics

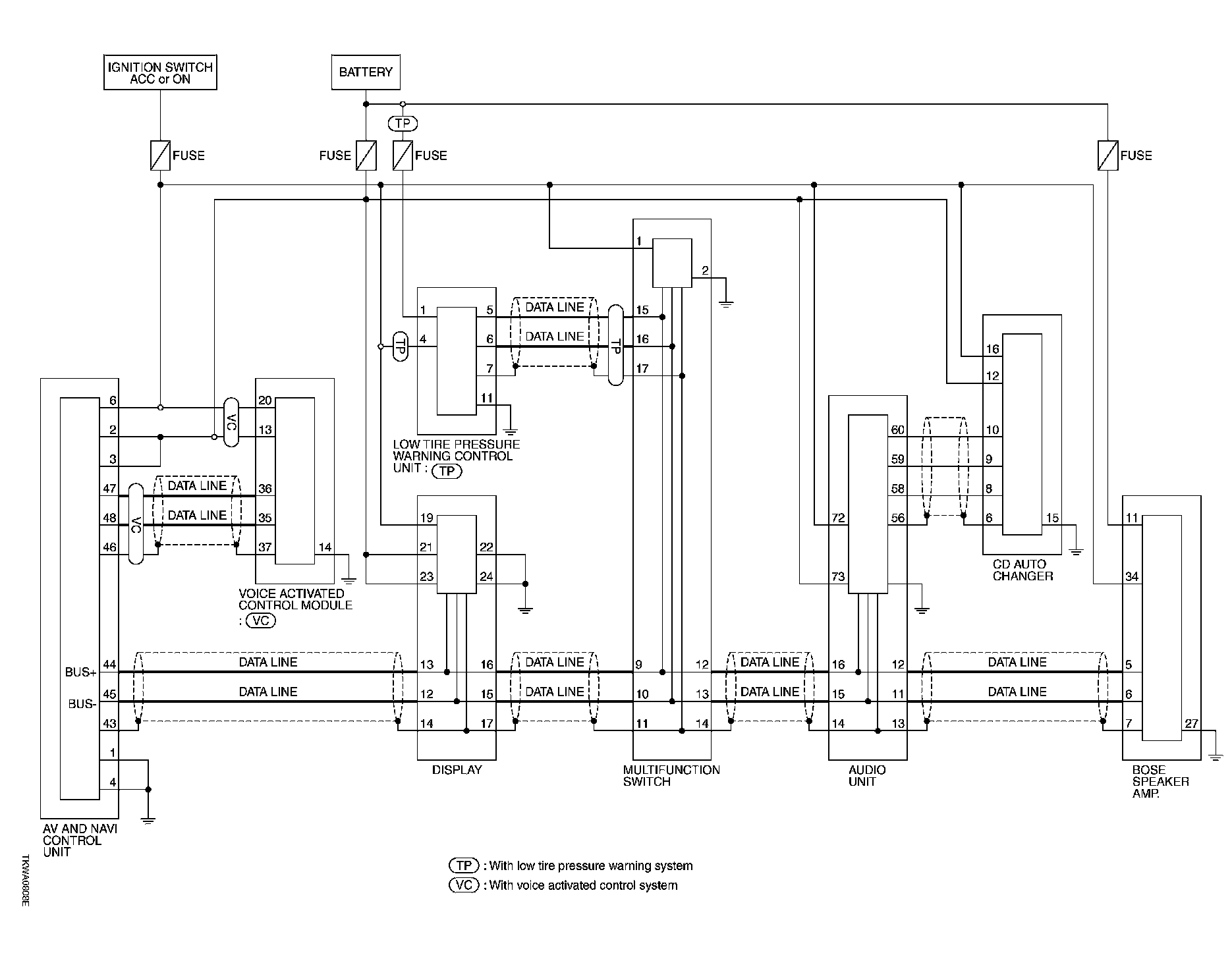

Navigation System Schematic:

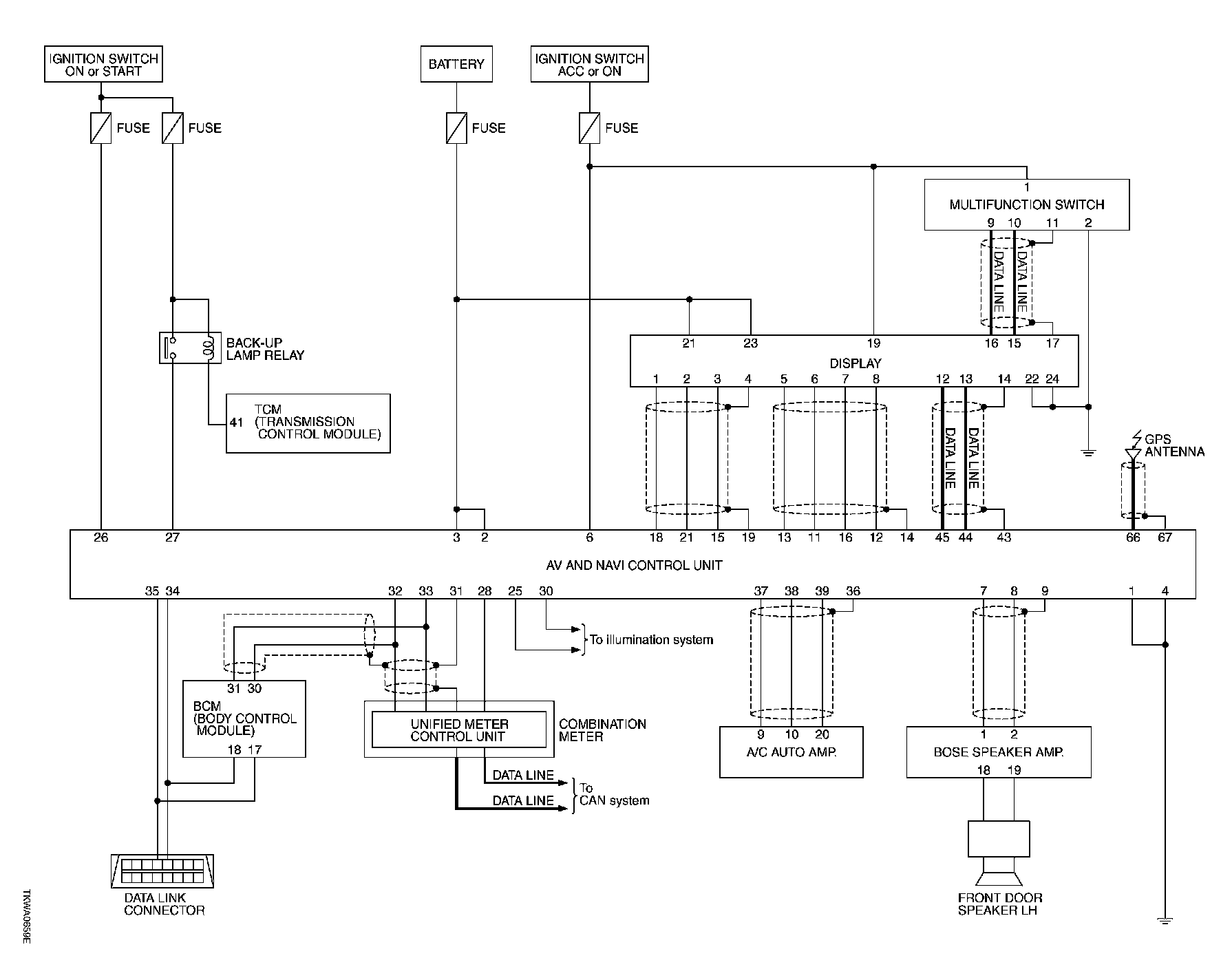

Navigation System Schematic:
