Infiniti
>>
2003
>>
I35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
Disc Brake System
REAR DISC BRAKE:

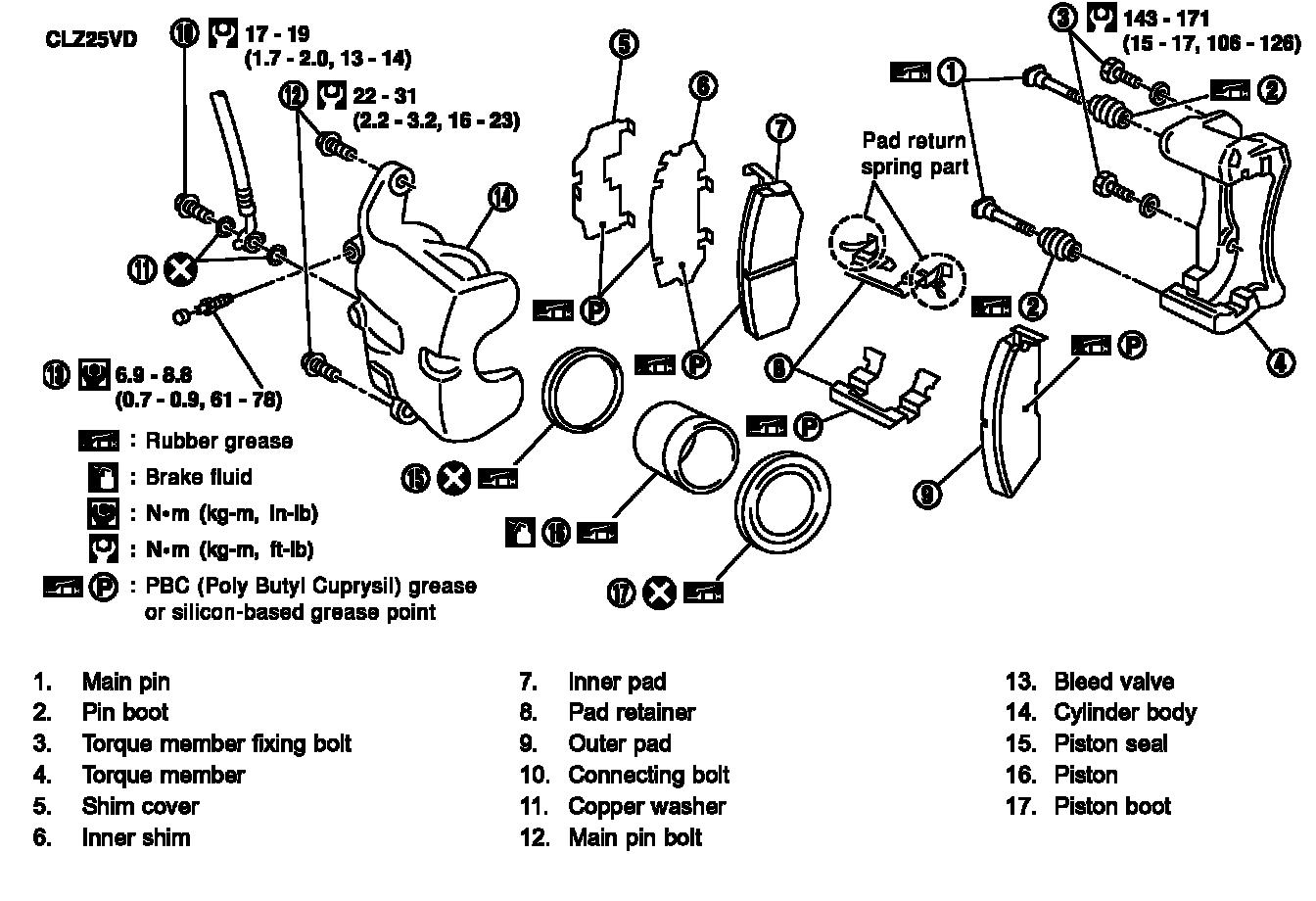

FRONT DISC BRAKE:
