Control Unit Input/Output Signal Standard

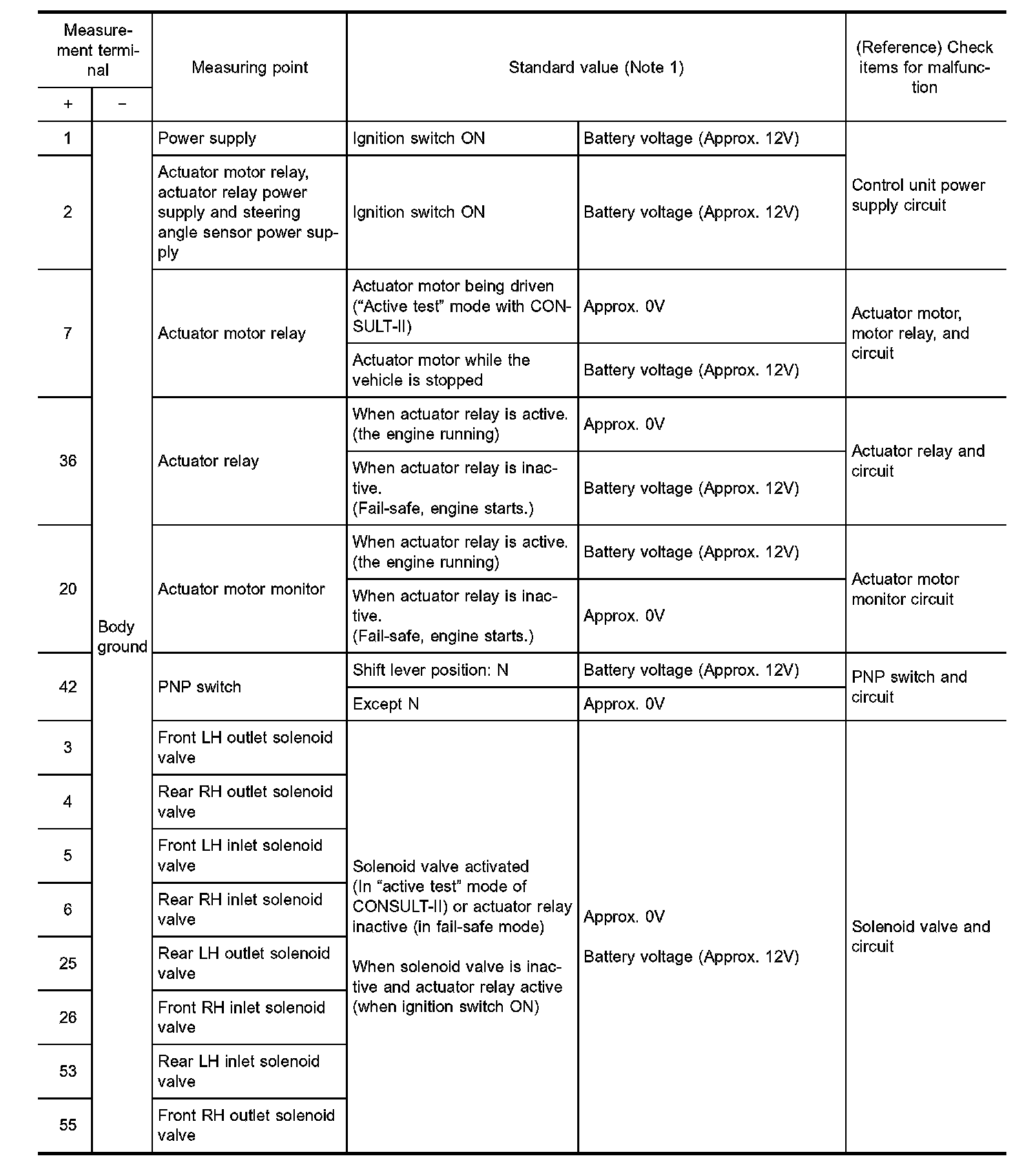

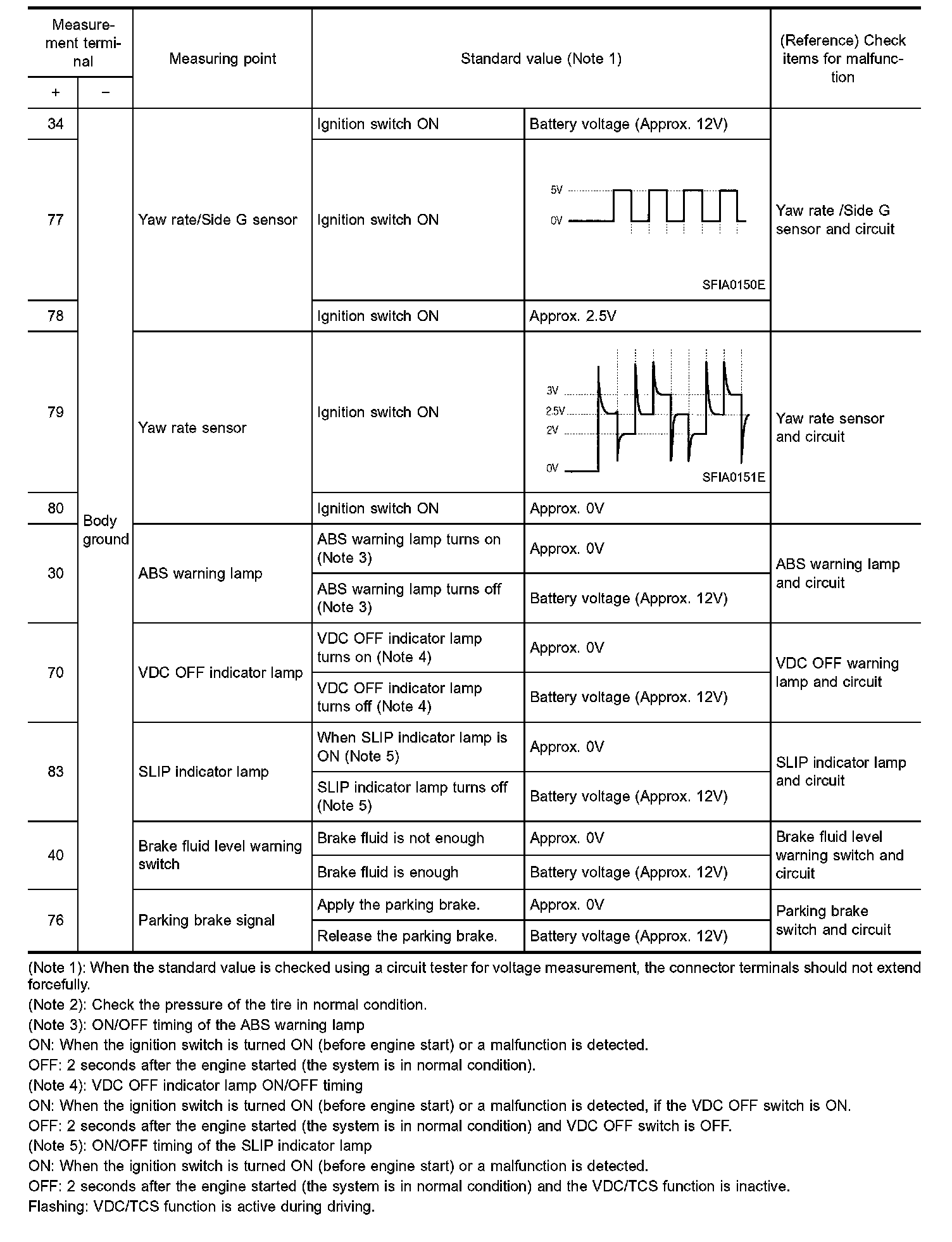

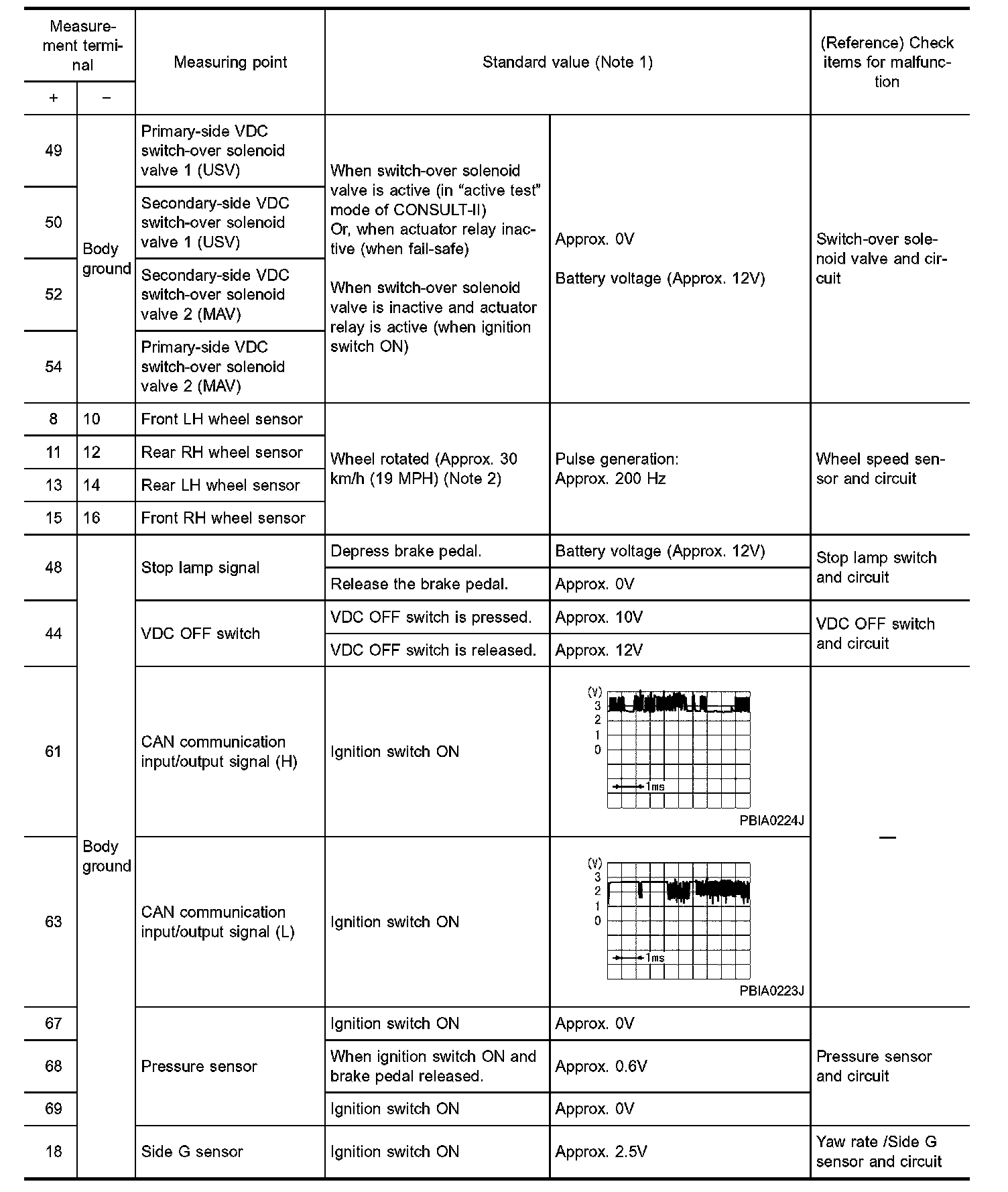

STANDARDS USING A CIRCUIT TESTER AND OSCILLOSCOPE

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

CAUTION: Connect the connectors for the VDC/TCS/ABS control unit and actuator, and turn the ignition switch ON.

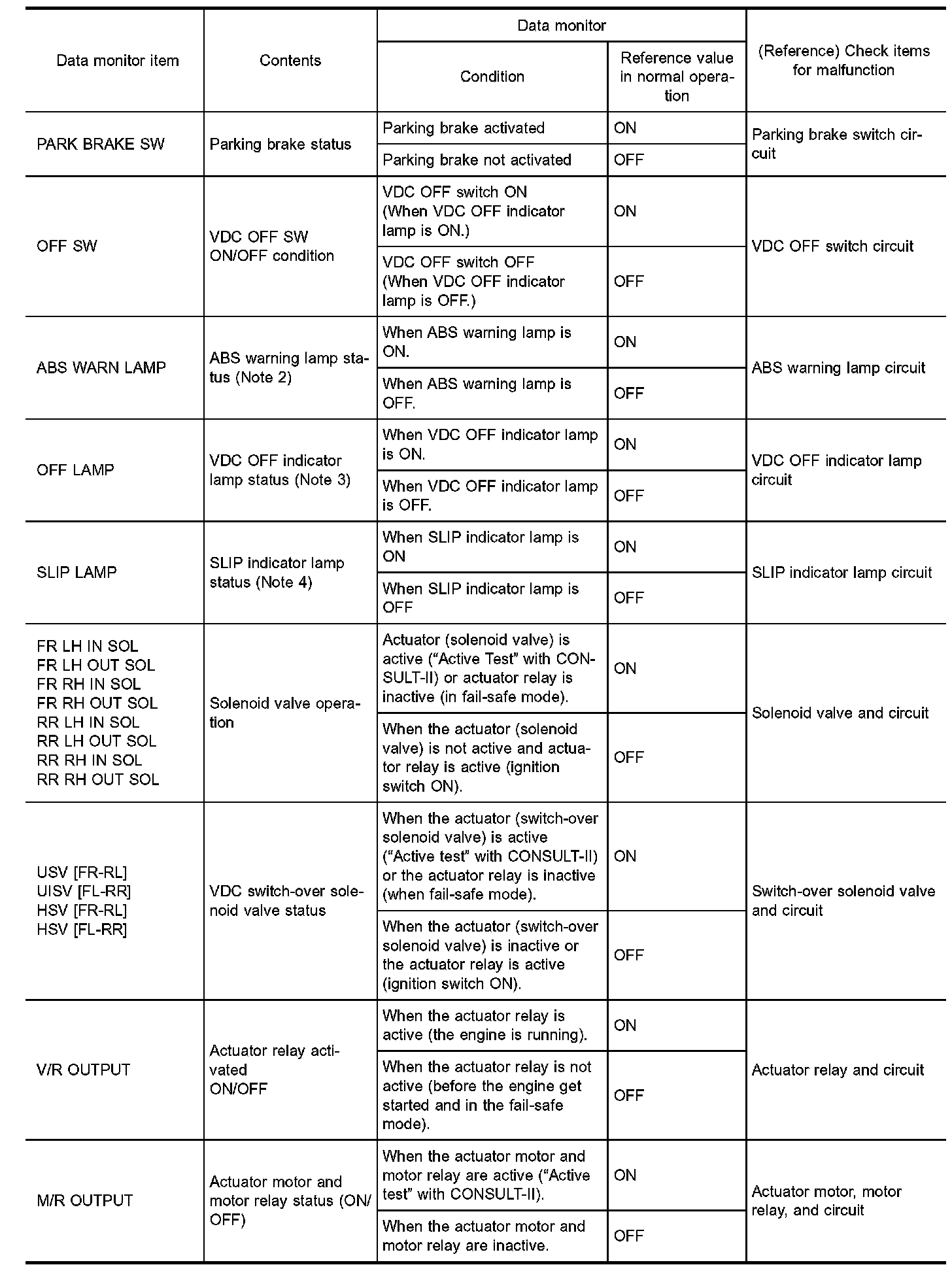

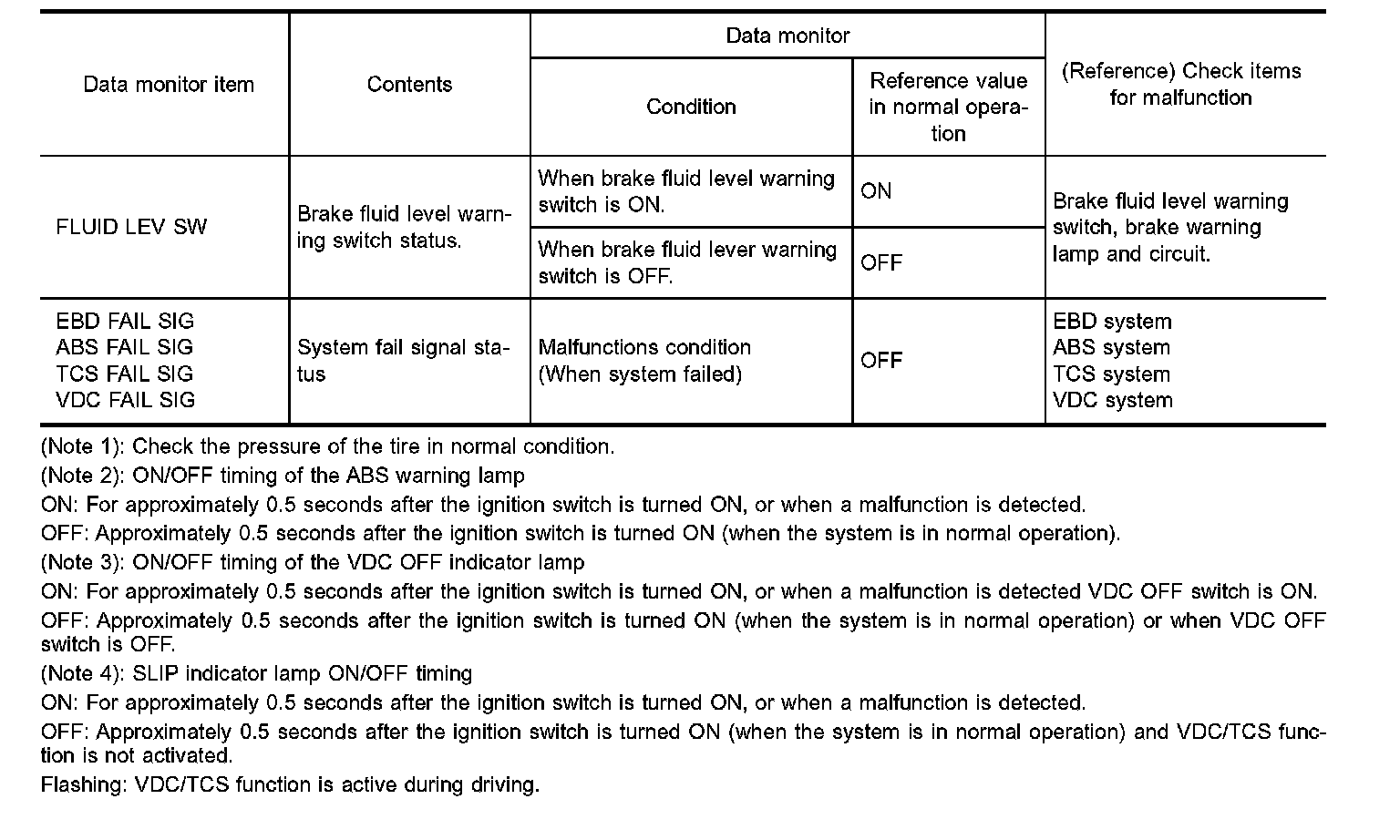

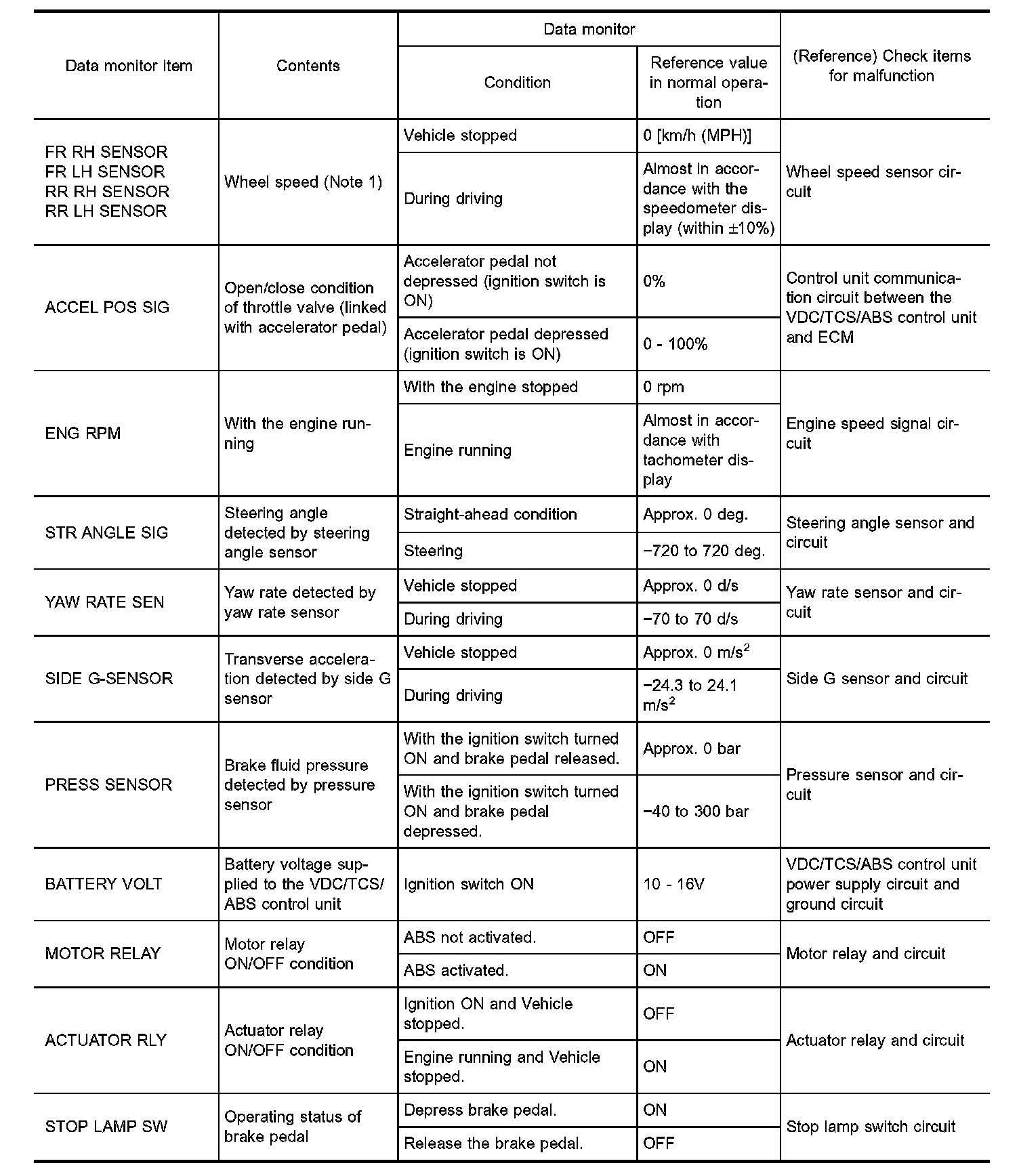

STANDARDS WITH CONSULT-II

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

CAUTION: The displayed item is the data calculated by the control unit, so it may indicate a normal value even if an output circuit (harness) is open or shorted.
