Trouble Code Descriptions

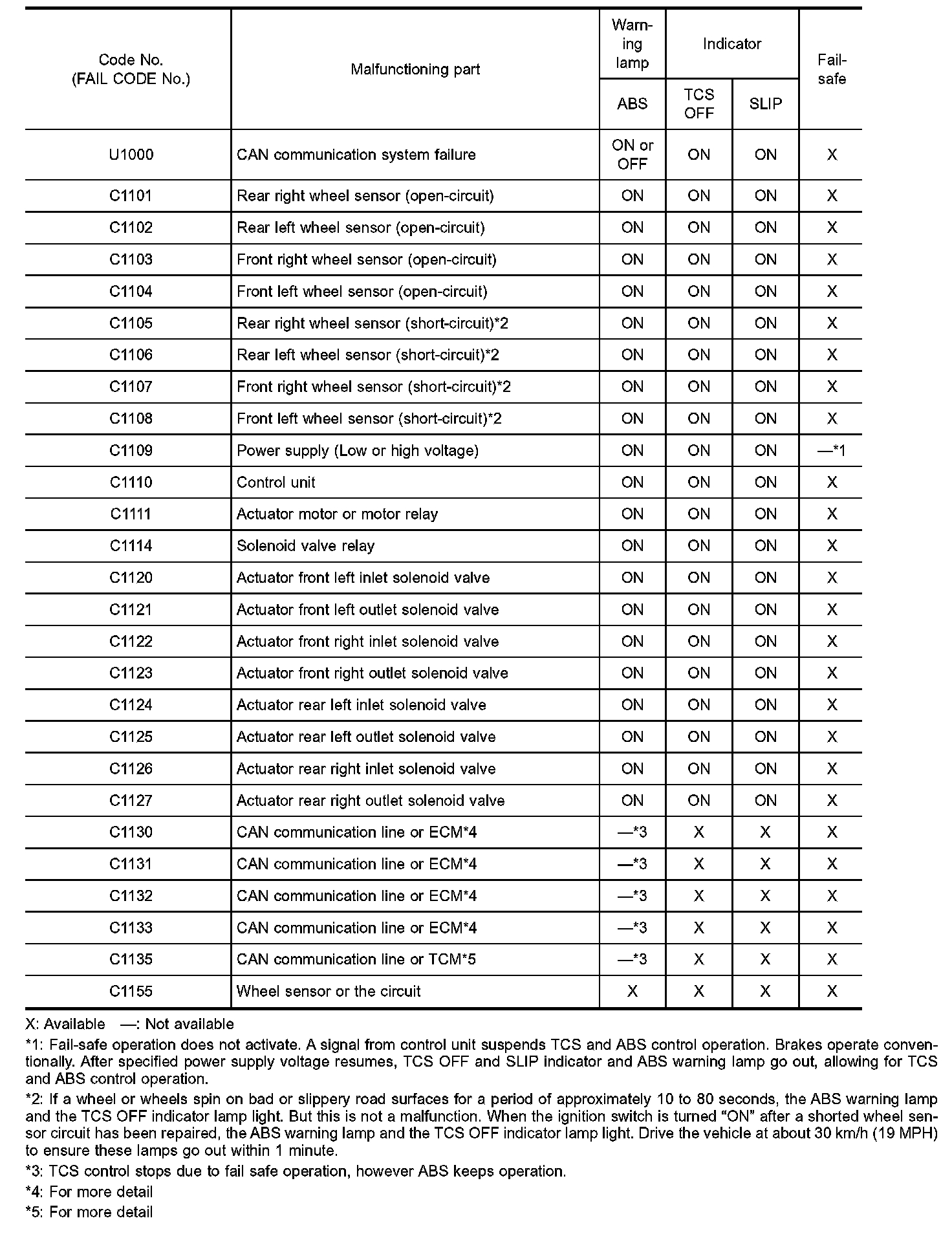

Malfunction Code/Symptom Chart

Malfunction Code/Symptom Chart:

NOTE: When a system part have electric malfunction, ABS warning lamp is illuminated by fail-safe function. According to malfunctioning condition, both ABS and EBD system become in following conditions.
1. ABS is not operated. EBD is operated.
2. Both ABS and EBD are operated. (Same condition as the vehicle without ABS and EBD)

On the condition (1.) some sound for ABS system self-diagnosis can be heard same as usual, when key switch is turned ON or first starting.
