Smart Entrance Control Unit
Smart Entrance Control Unit

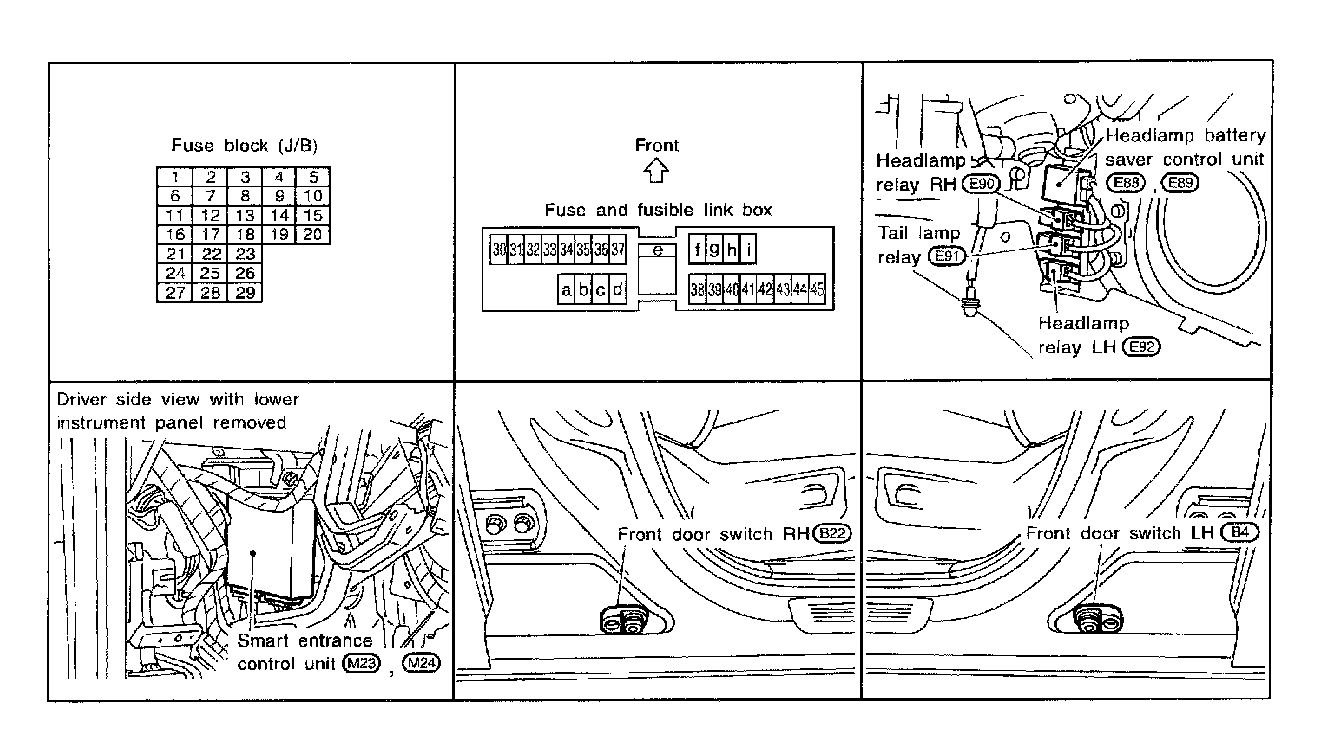

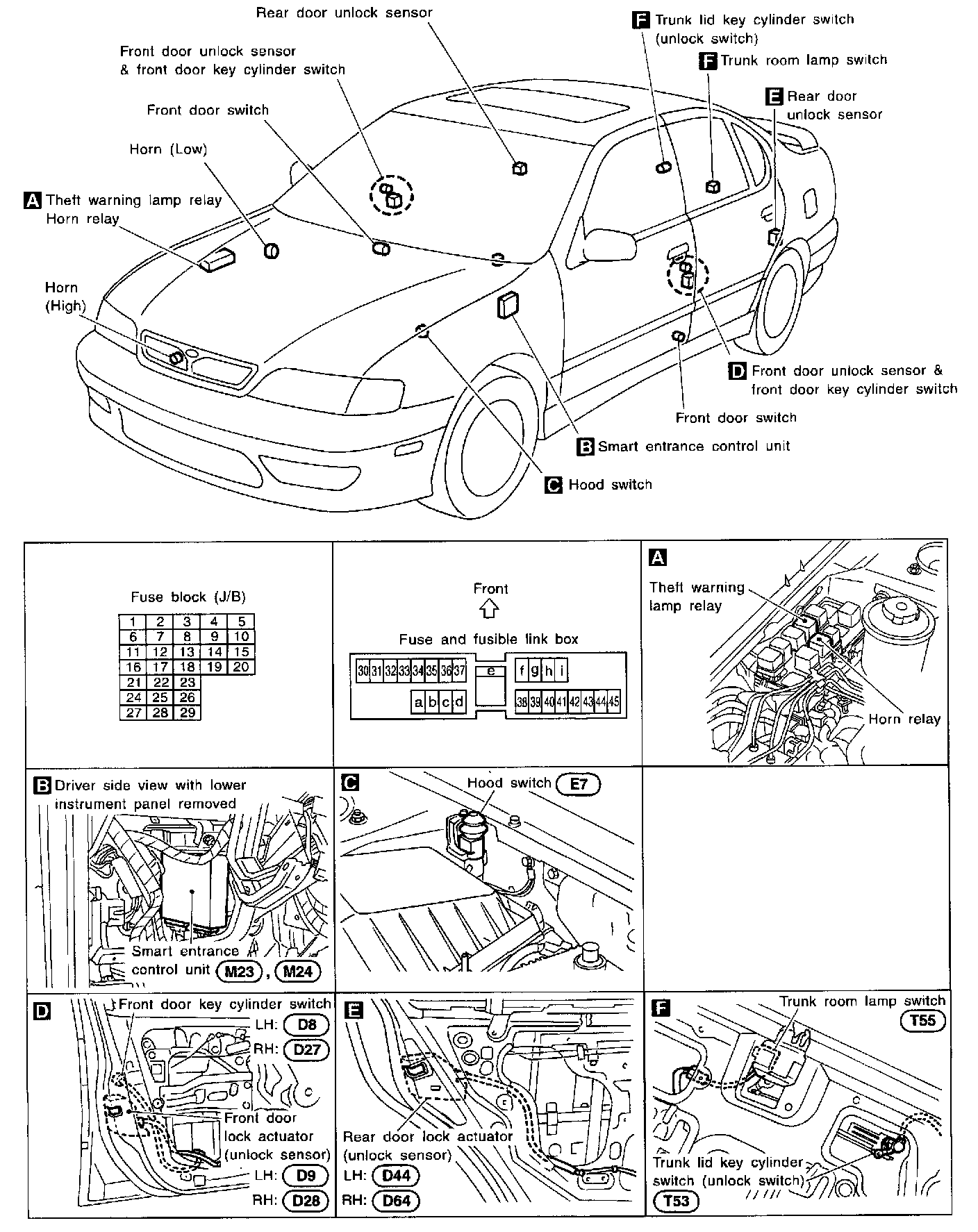

Component Parts and Harness Connector Location
Passenger Compartment
