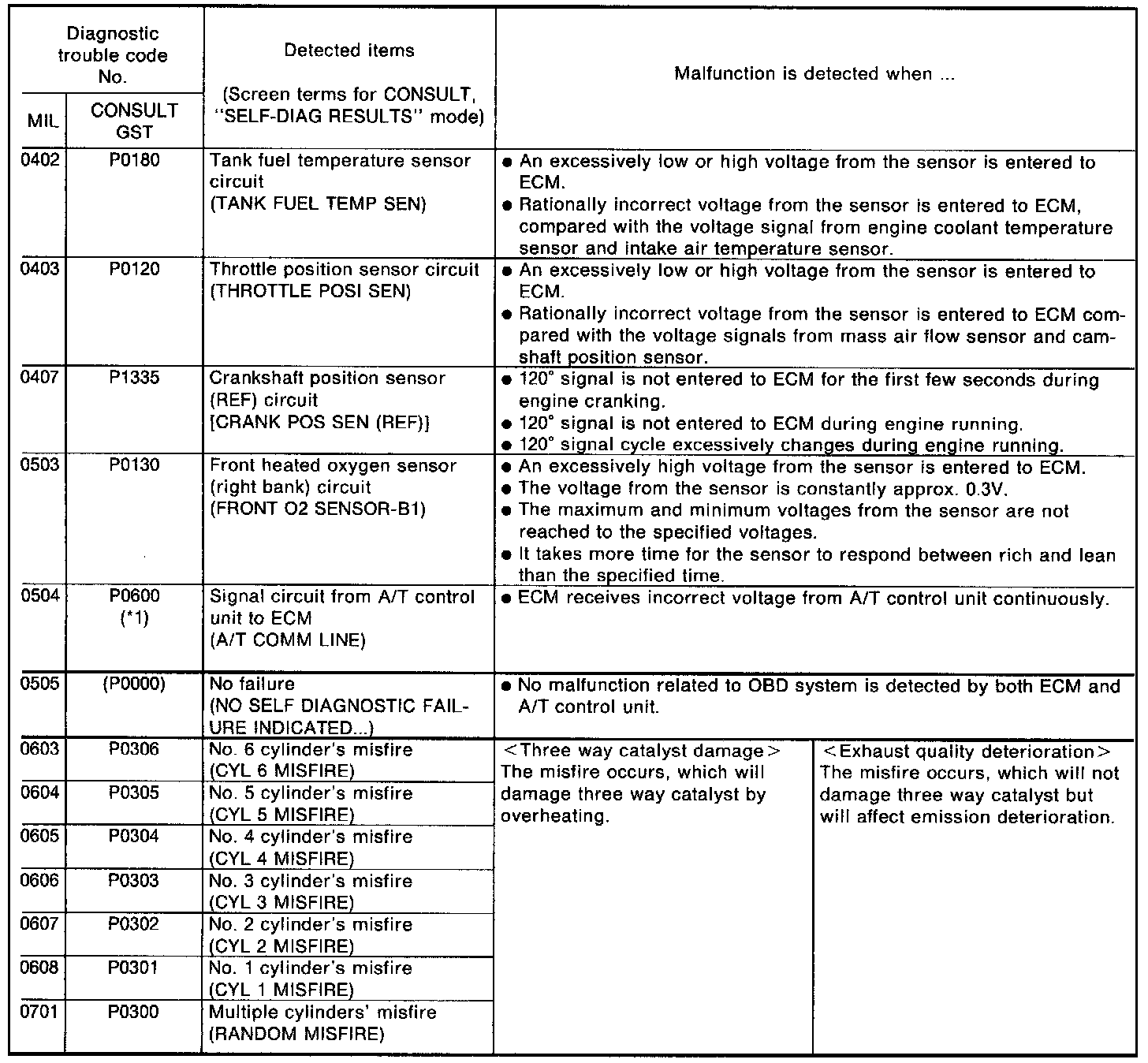

Codes 0402 (P0180) - 0701 (P0300)

ENGINE RELATED ITEMS
*1: In case of these diagnostic items, the freeze frame data will not be stored in ECM.
These diagnoses do not have the 2 trip detection logic, and will not light up the MIL.

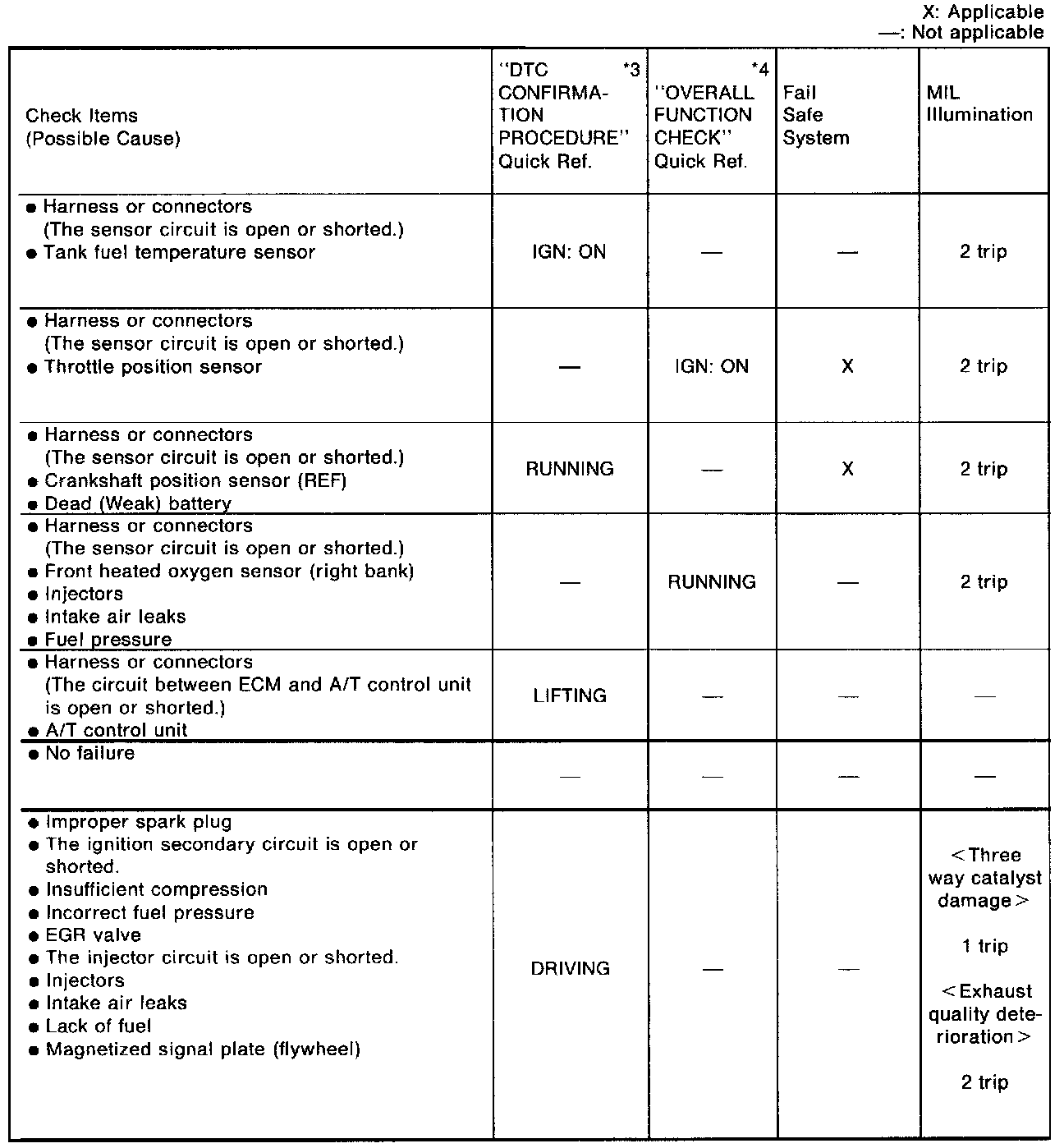

*3: This is Quick Reference of "DTC CONFIRMATION PROCEDURE".
Details are described in each TROUBLE DIAGNOSIS FOR DTC xxx.
Abbreviations are as follows:
IGN: ON :
Turning the ignition switch ON is required for the ECM to detect a malfunction (if one exists).
RUNNING :
Running engine is required for the ECM to detect a malfunction (if one exists).
LIFTING :
Lifting up the vehicle, running engine and spinning wheels are required for the ECM to detect a malfunction (if one exists).
DRIVING :
Driving the vehicle in the specified pattern is required for the ECM to detect a malfunction (if one exists).

*4:
- The "OVERALL FUNCTION CHECK" is a simplified and effective way to inspect a component or circuit.
In some cases, the "OVERALL FUNCTION CHECK" is used rather than a "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE".
When no DTC CONFIRMATION PROCEDURE is available, the "NG" result of the OVERALL FUNCTION CHECK can be considered to mean the same as a DTC detection.
- During an "NG" OVERALL FUNCTION CHECK, the DTC might not be confirmed.
*5: Using CONSULT, "P0130" will be displayed.




*4: This is Quick Reference of Overall Function Check.
Details are described in each TROUBLE DIAGNOSIS FOR DTC XXX.
Abbreviations are as follows:
IGN: ON :
Turning the ignition switch ON is required for checking the function of the sensor, switch, solenoid and circuit.
RUNNING :
Running engine is required for checking the function of the sensor, switch, solenoid and circuit.
LIFTING :
Lifting up the vehicle, running engine and spinning wheels are required.
DRIVING :
Driving the vehicle in the specified pattern is required.
