Home
>>
Hyundai
>>
2011
>>
Sonata L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
Connector Views

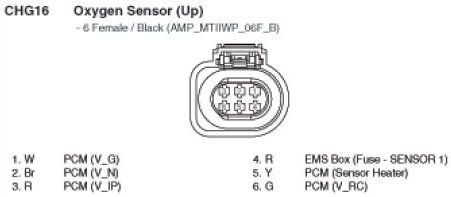

CHG16 Oxygen Sensor (Up):
CHG17 Oxygen Sensor (Down):
