Home
>>
Hyundai
>>
2011
>>
Sonata L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Locations
>>
Connector Locations
Connector Locations

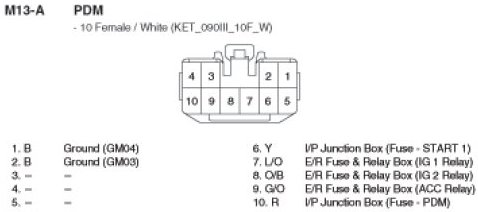

M13-A PDM:

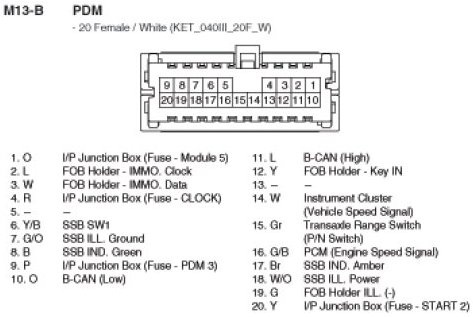

M13-B PDM:
