Electronic Throttle Actuator: Specifications





Specification

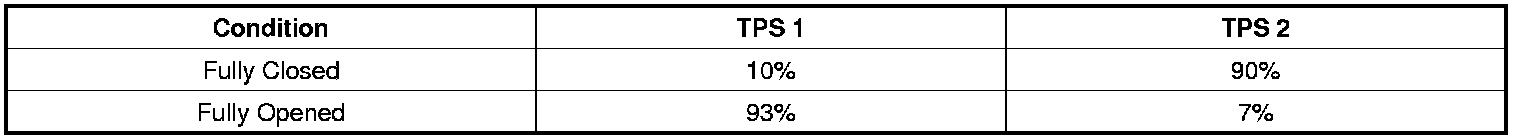

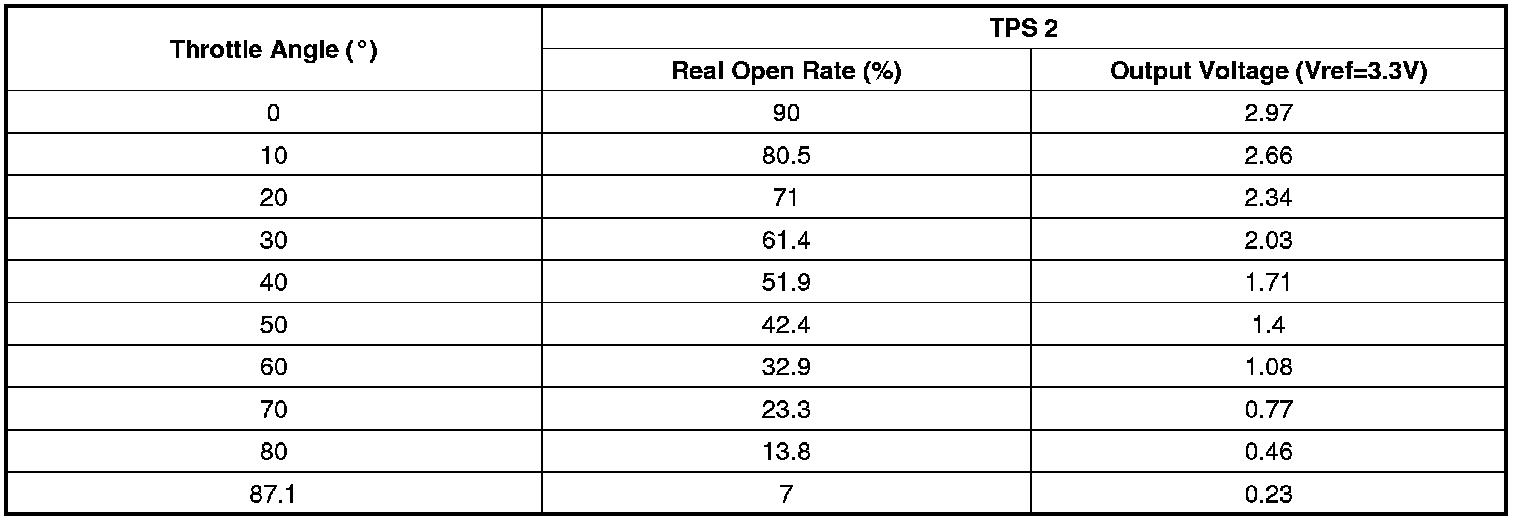

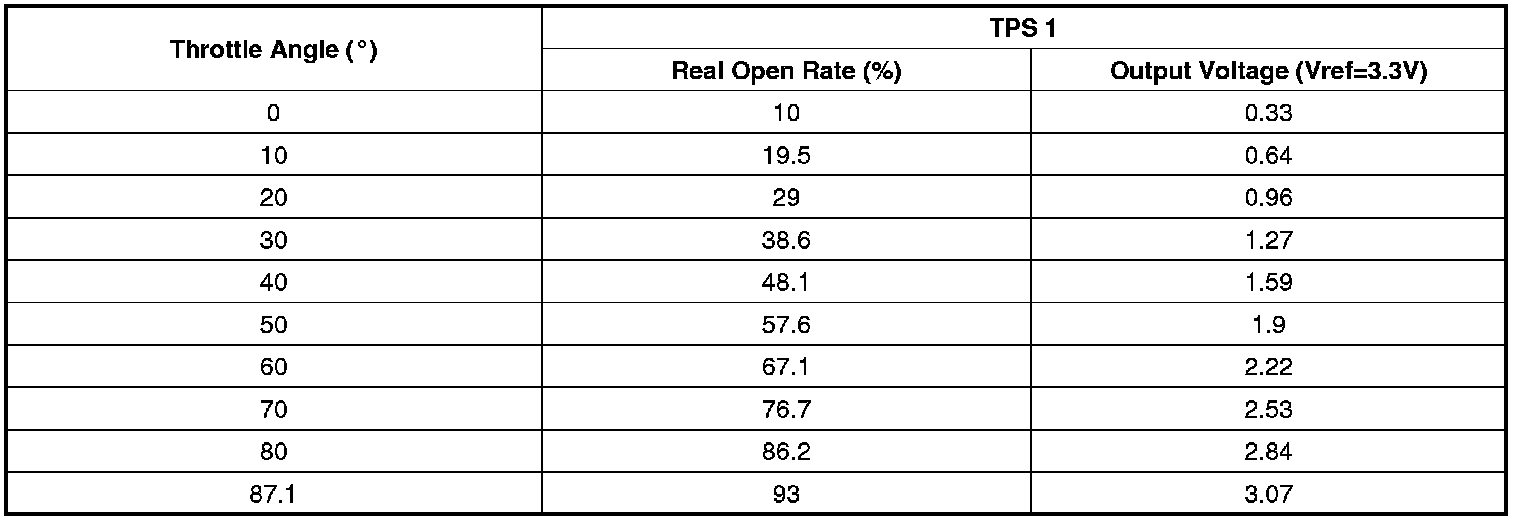

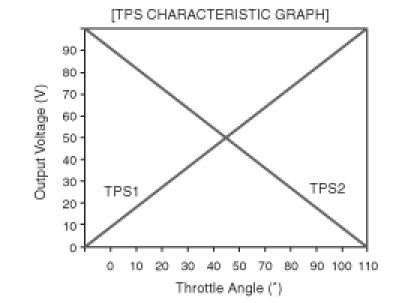

[Throttle position sensor]
























[ETC motor]
