Steering Angle Sensor: Testing and Inspection

Service Adjustment Procedure

Checking Steering Angle

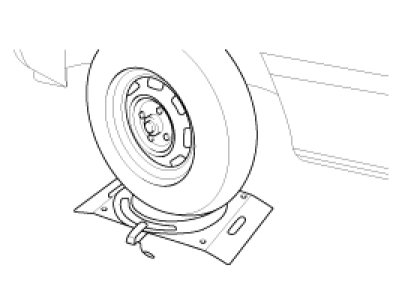

1. Place the front wheel on a turning radius gauge and measure the steering angle.

Standard value :
Wheel angle
Inside wheel 39.17° ±2°
Outside wheel 31.56°

2. If the measured value is not within the standard value, adjust the toe and inspect again.
