Repair Procedures

Inspection

1. Ignition "ON"

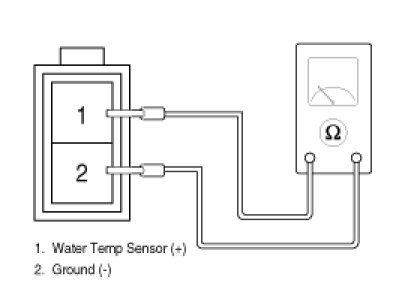

2. Using the multi-tester, Measure resistance between terminal "1" and "2" of water temperature sensor.

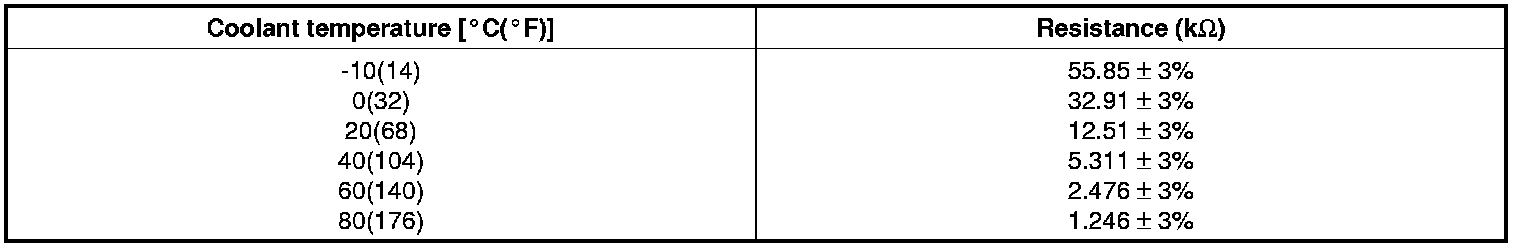

Specification










NOTE:
Negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.

Replacement

1. Disconnect the negative (-) battery terminal.

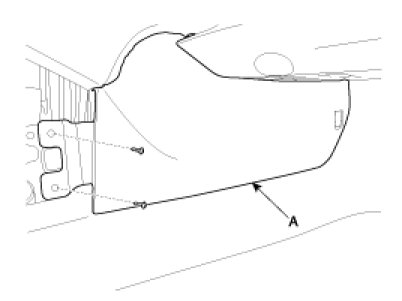

2. Remove the center lower side cover(A).

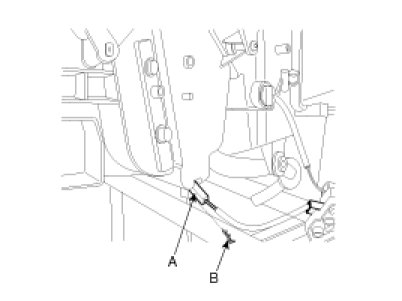

3. Pull the water temperature sensor (A) out at the heater unit with the stopper (B).




4. Installation is the reverse order of removal.

NOTE:
Take care that wire of water temperature sensor is not to be damaged.
