Home
>>
Hyundai
>>
2010
>>
Genesis Coupe V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>

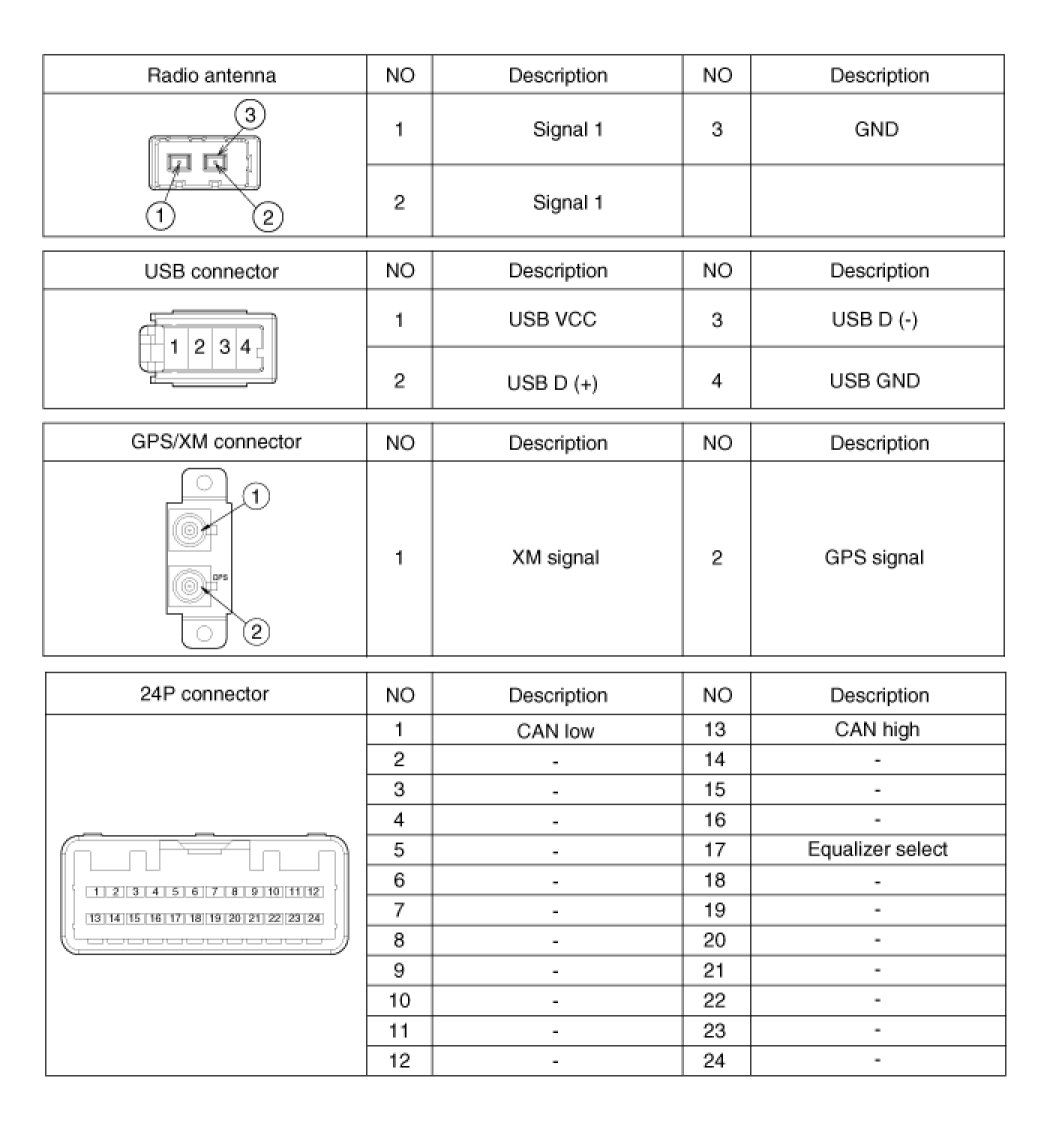

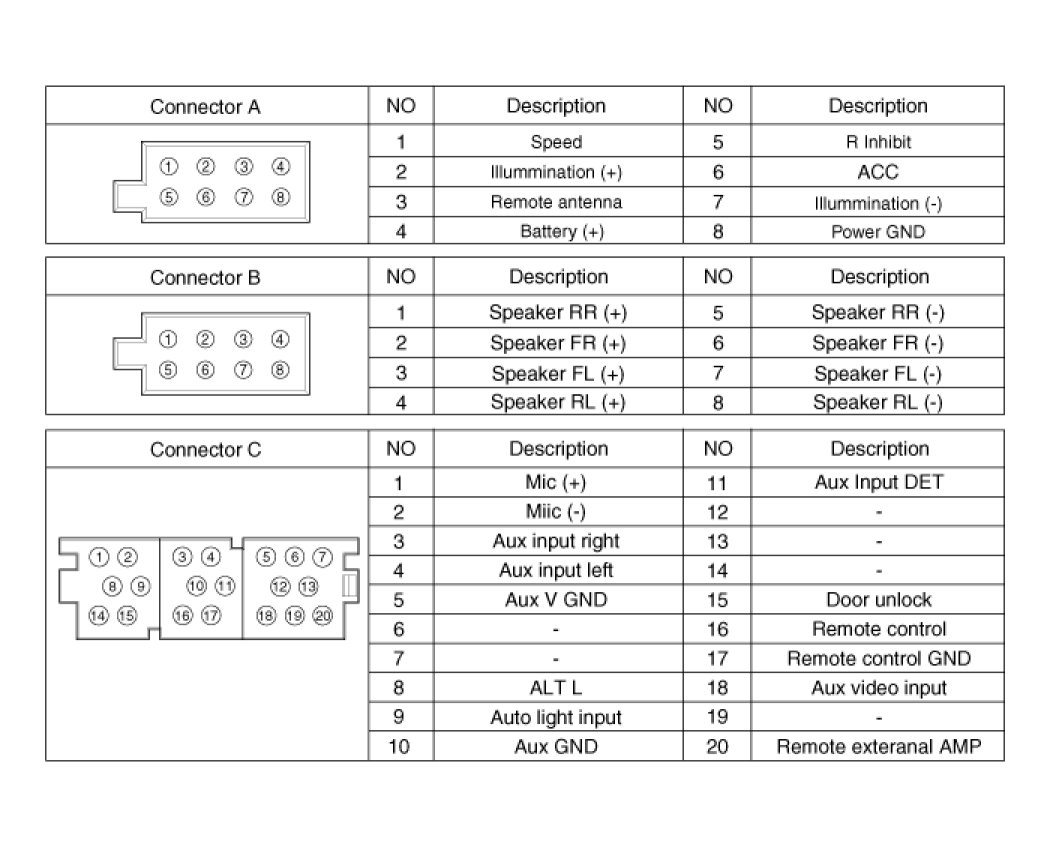

Connector Views
>>
Entertainment Systems
>>
System Diagram
System Diagram
Components

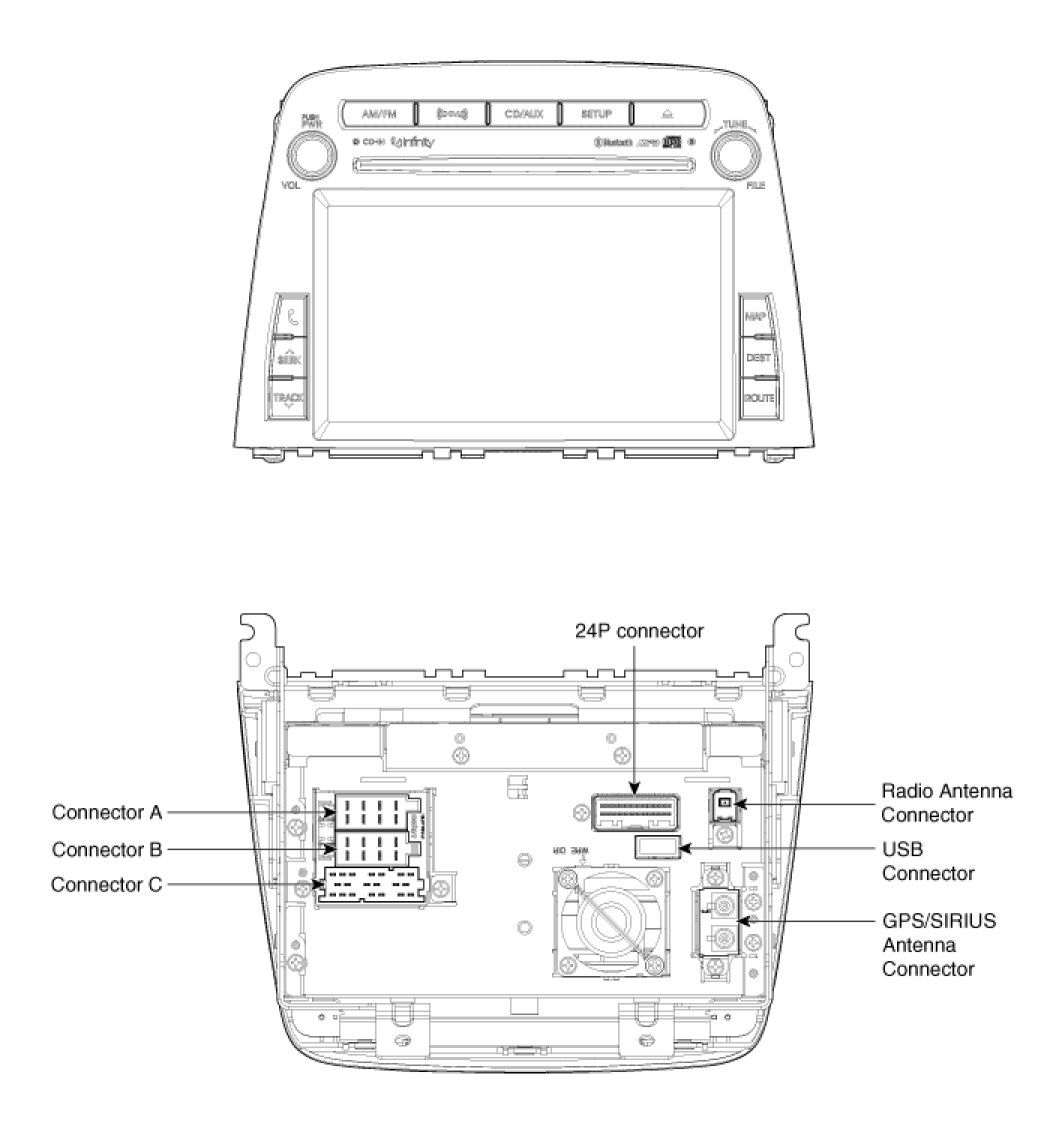

AVN (A/V & Navigation) Head Unit
