Seat Frame Assembly Replacement





Replacement

Seat Frame Assembly Replacement

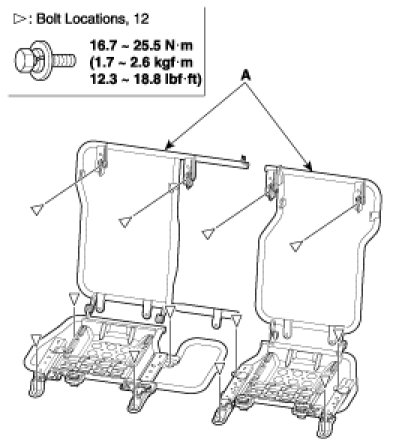

1. Loosen the mounting bolts.
2. Remove the seat frame (A).




3. Installation is the reverse of removal.
