Transmission Pressure Test Port: Service and Repair

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (Service and Repair).




2. Clean the surrounding area of the oil pressure test plug.

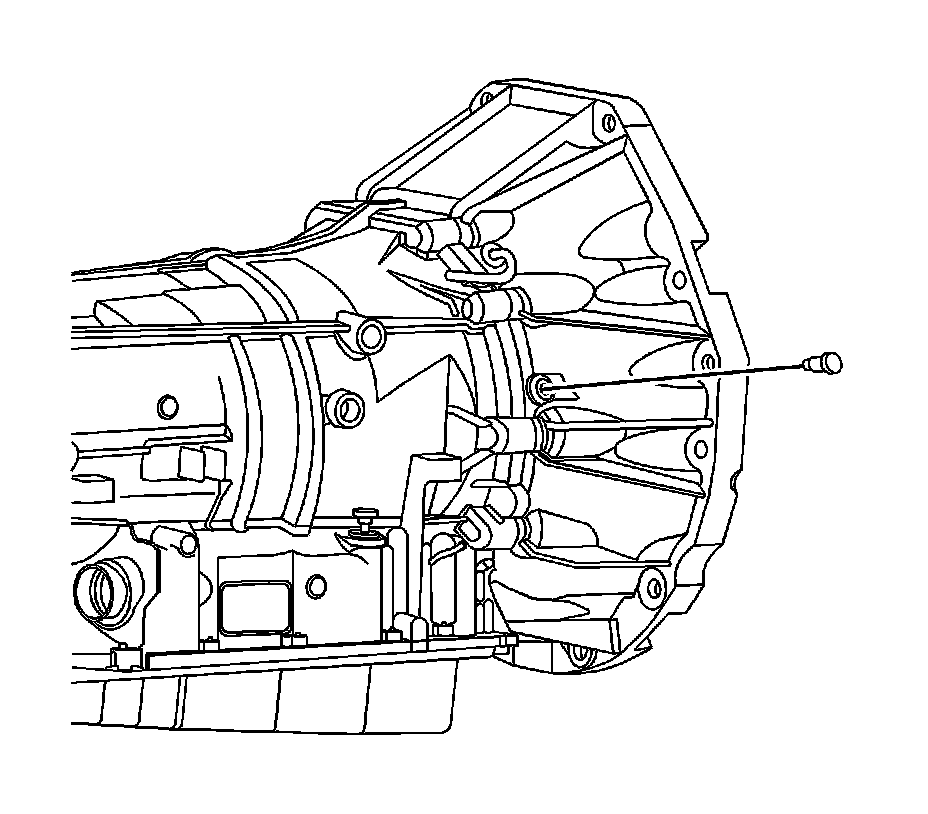

3. Remove the oil pressure test plug.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the oil pressure test plug.

Tighten the oil pressure test plug to 11 Nm (97 lb in).

2. Check the transmission fluid level (fill if necessary). Refer to Transmission Fluid Check (Testing and Inspection).
3. Lower the vehicle.
