Home >> Honda >> 2012 >> Civic Hybrid L4-1.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations

Information Bus: Locations




Body

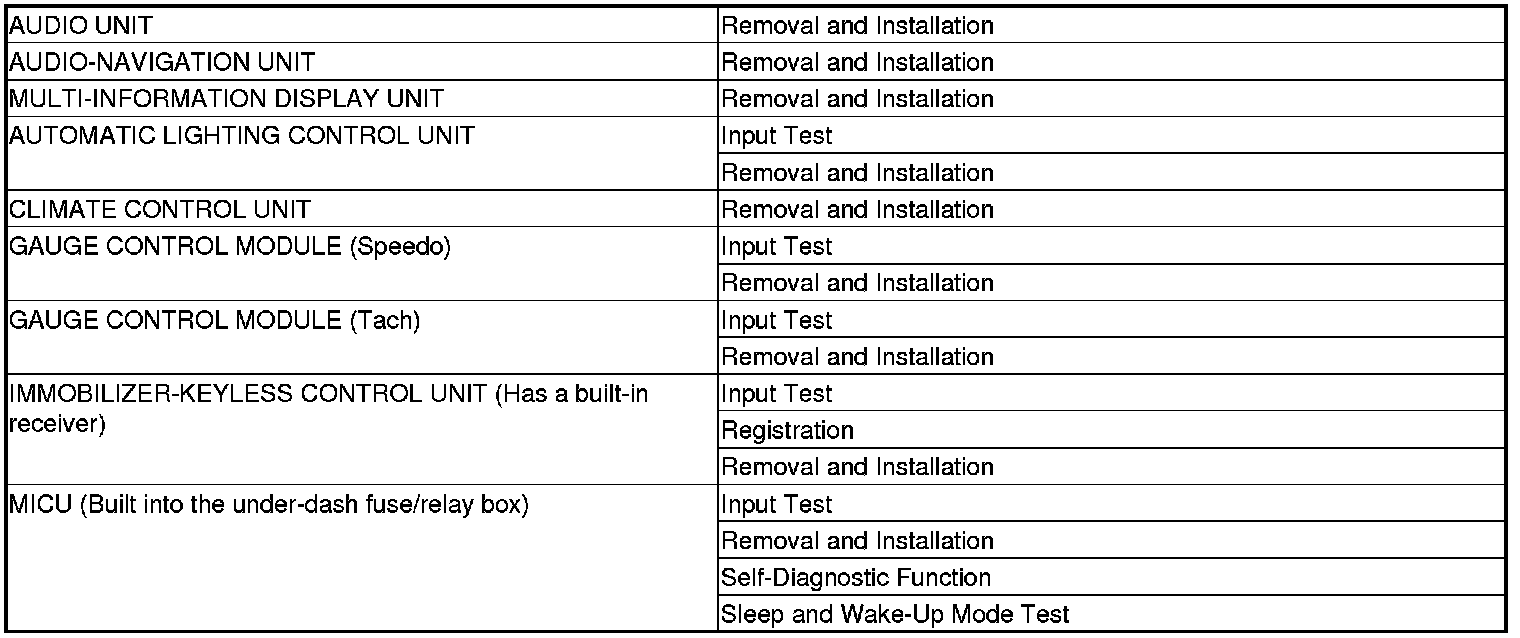

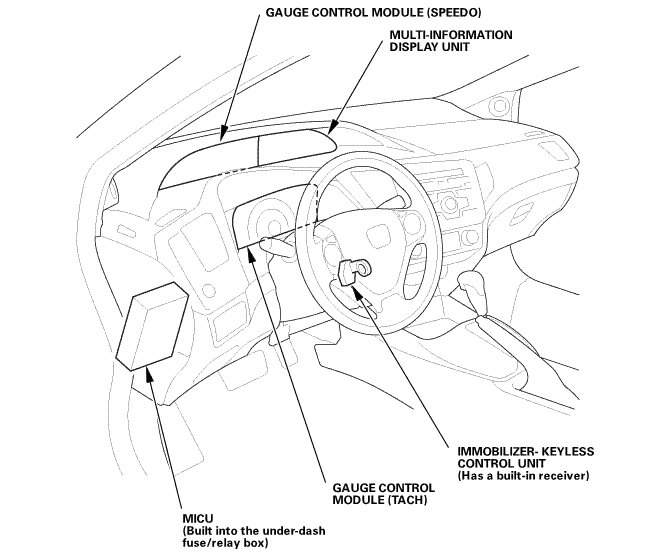

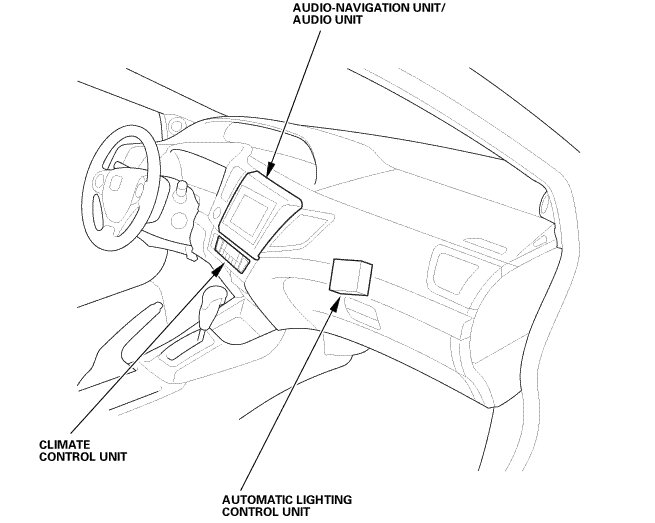

Multiplex Integrated Control System Component Location Index
