Control Assembly, HVAC
Control Assembly, HVAC
HVAC

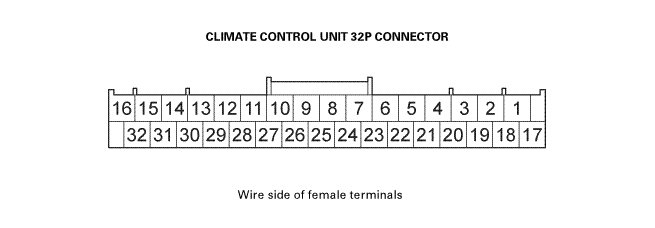

Climate Control Unit Connector for Inputs and Outputs

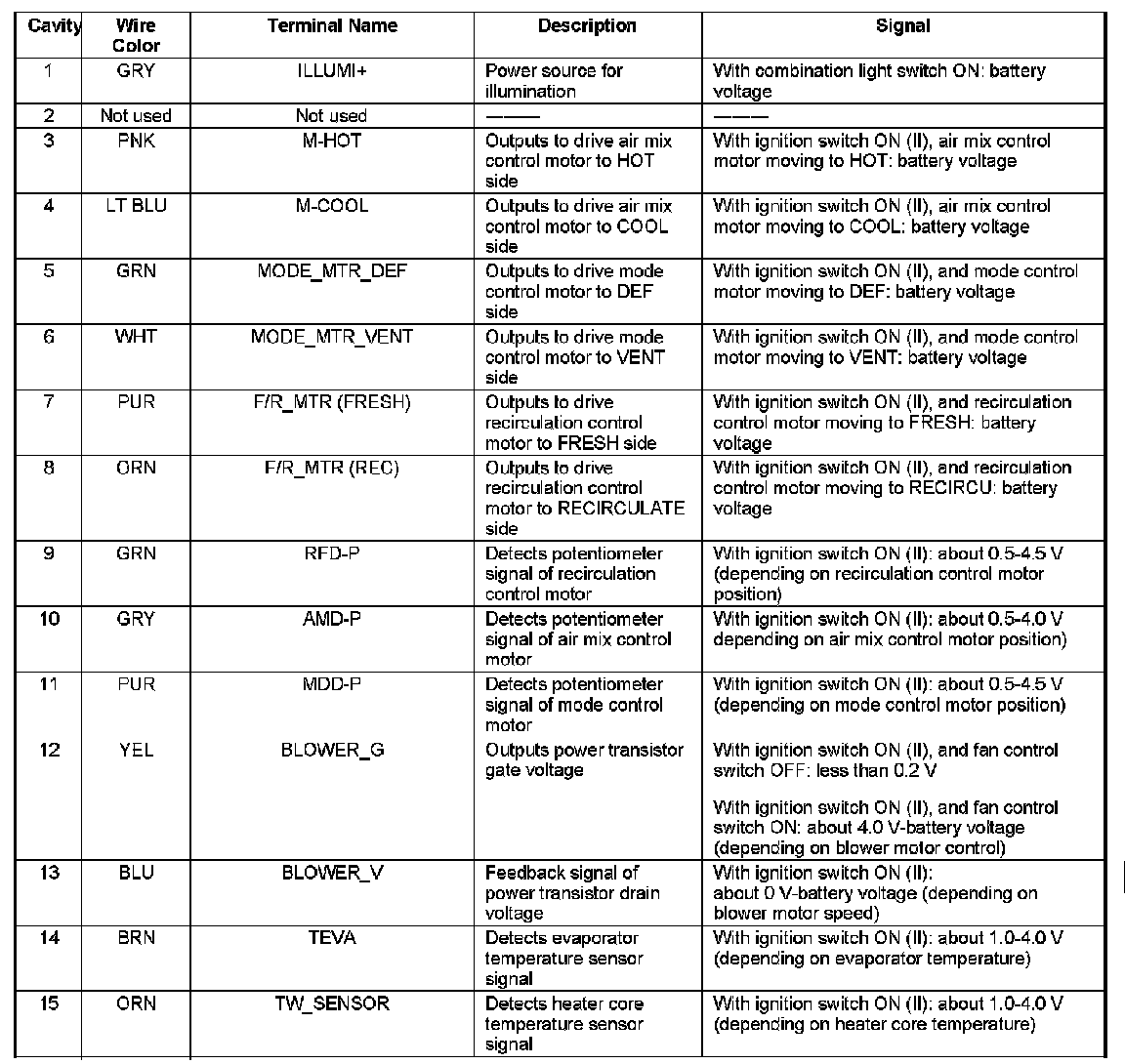

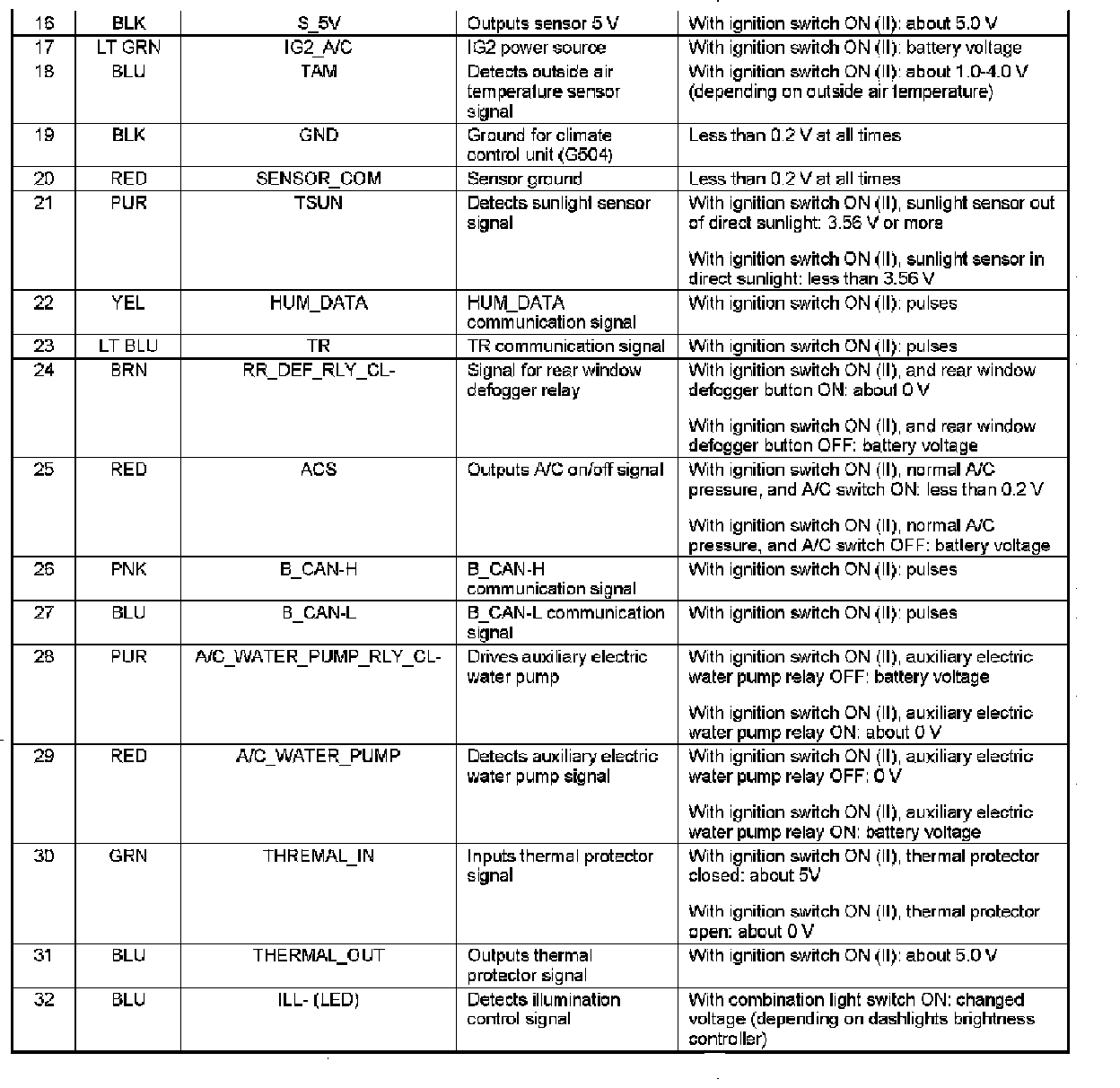

Climate Control Unit Inputs and Outputs
