Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Honda
>>
2007
>>
Accord V6-3.0L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Angle Sensor
Steering Angle Sensor

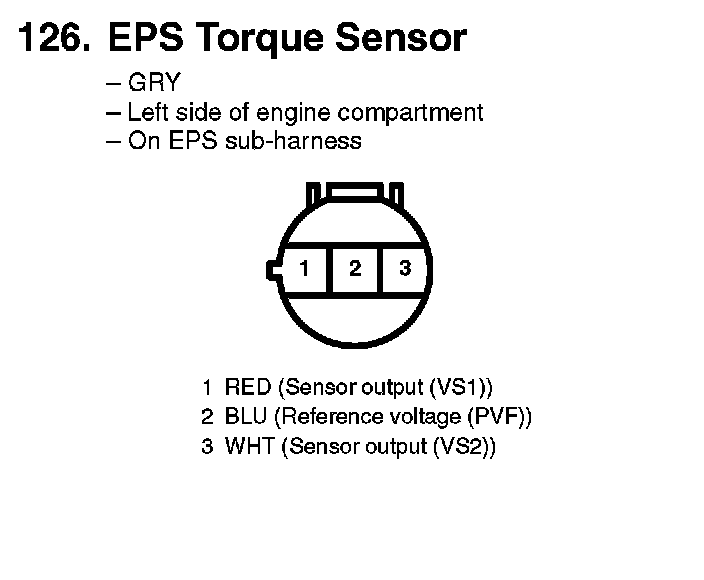

126. EPS Torque Sensor:

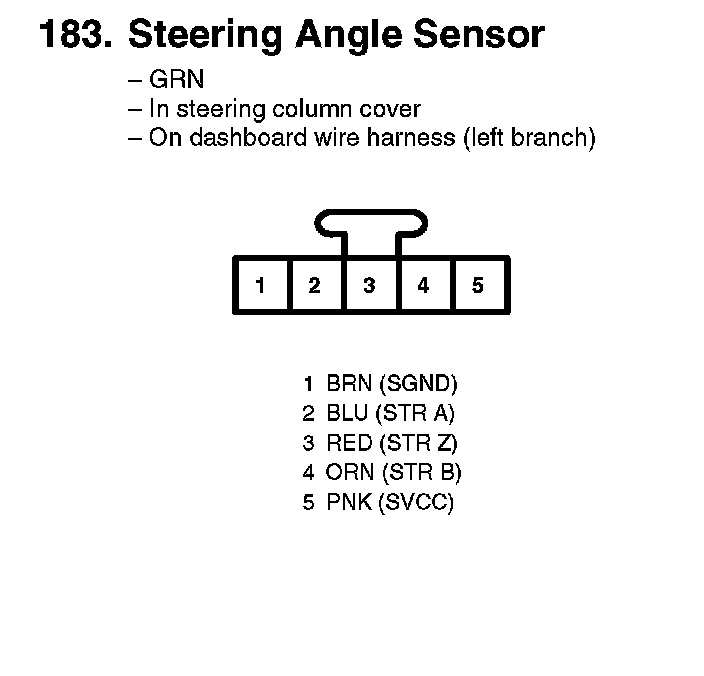

183. Steering Angle Sensor:
