Heater Core Temperature Sensor / Switch
Heater Core Temperature Sensor / Switch

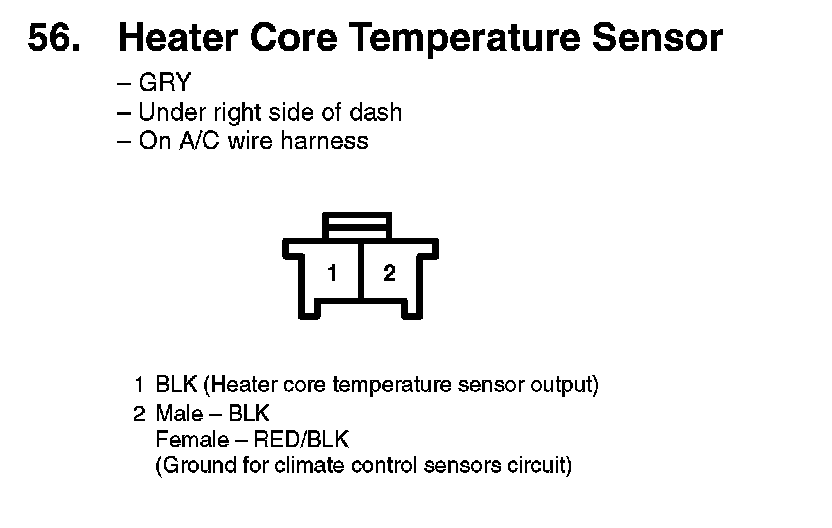

56. Heater Core Temperature Sensor:
