Civic L4-1.3L Hybrid
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Variable Valve Timing Solenoid
>>
Diagrams
>>
Connector Views
Connector Views

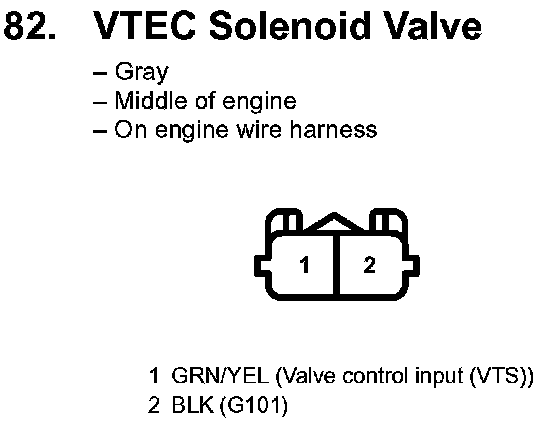

82. VTEC Solenoid Valve:
