Home >> Honda >> 2001 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Transmission Speed Sensor >> Locations

Transmission Speed Sensor: Locations

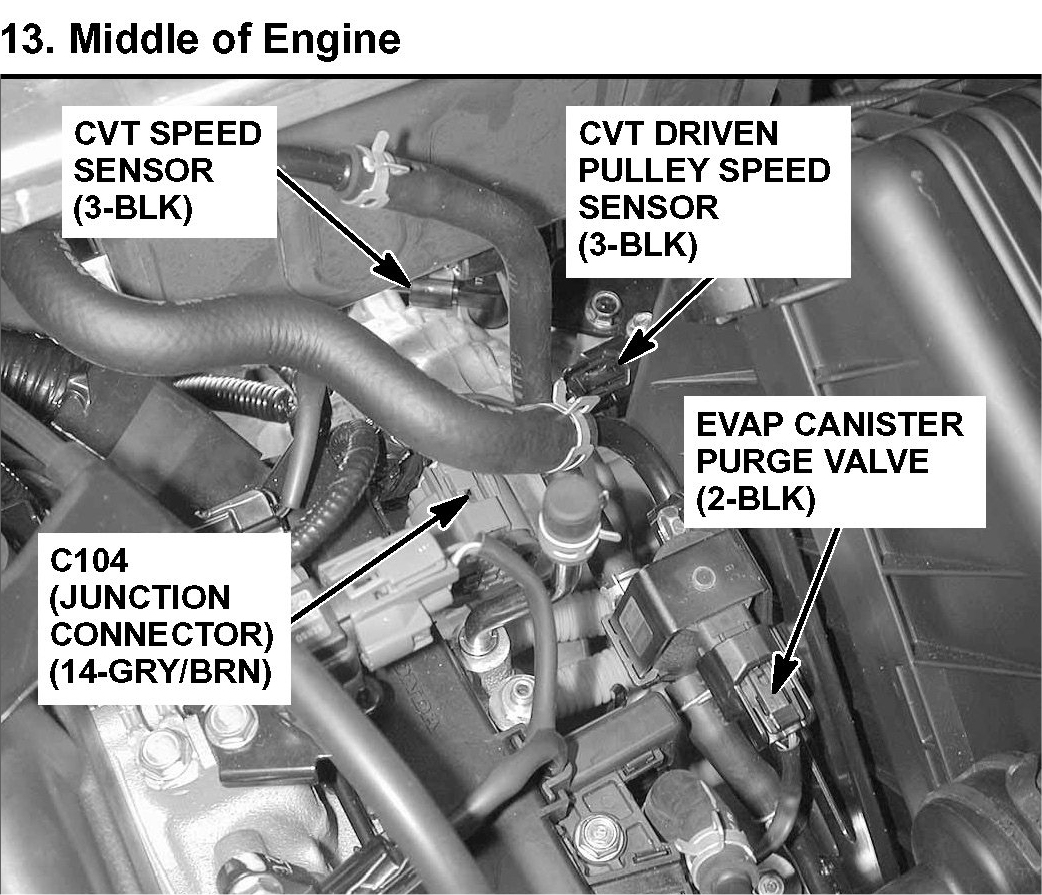

13. Middle of Engine:

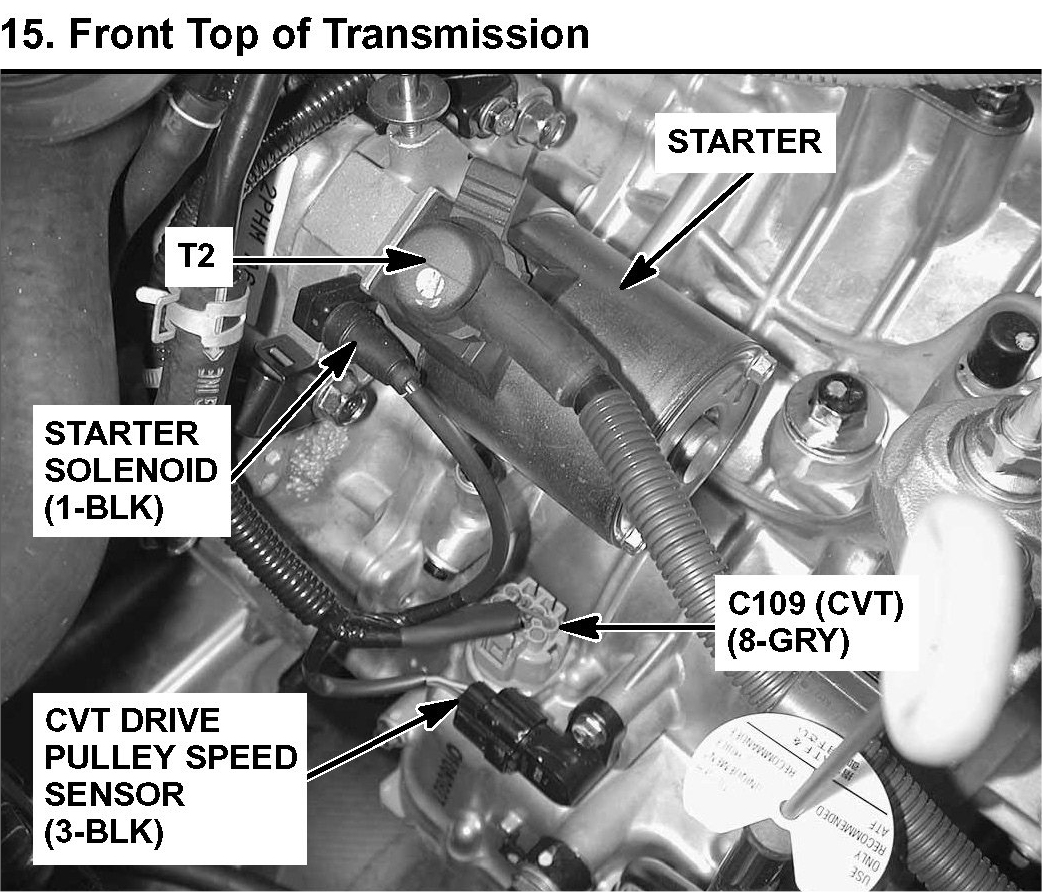

15. Front Top of Transmission:
