Home
>>
Honda
>>
1993
>>
Accord L4-2156cc 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagnostic Mode Switch/Connector
>>
Locations
>>
Component Locations
Component Locations

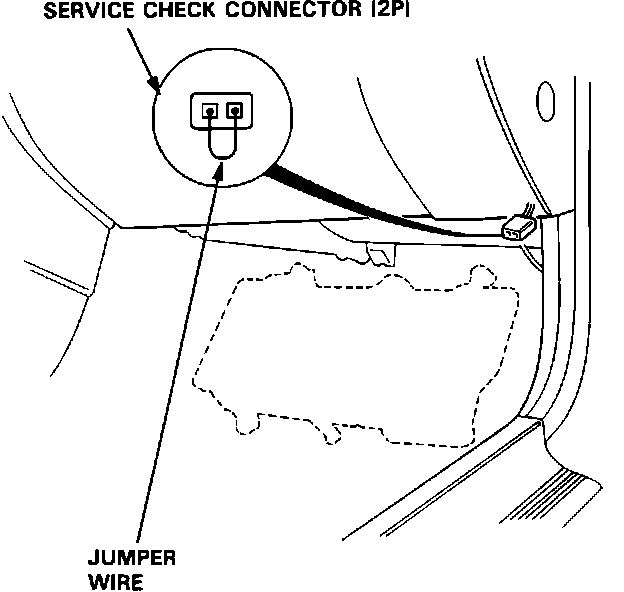

Service Check Connector:

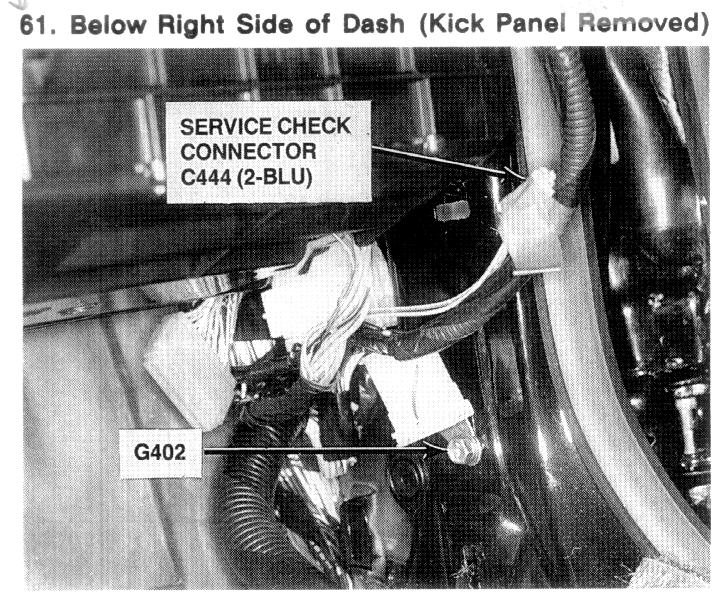

Below right side of dash, at kick panel
