Honda
>>
1989
>>
Prelude L4-1958cc SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Control Box Components
>>
California
California

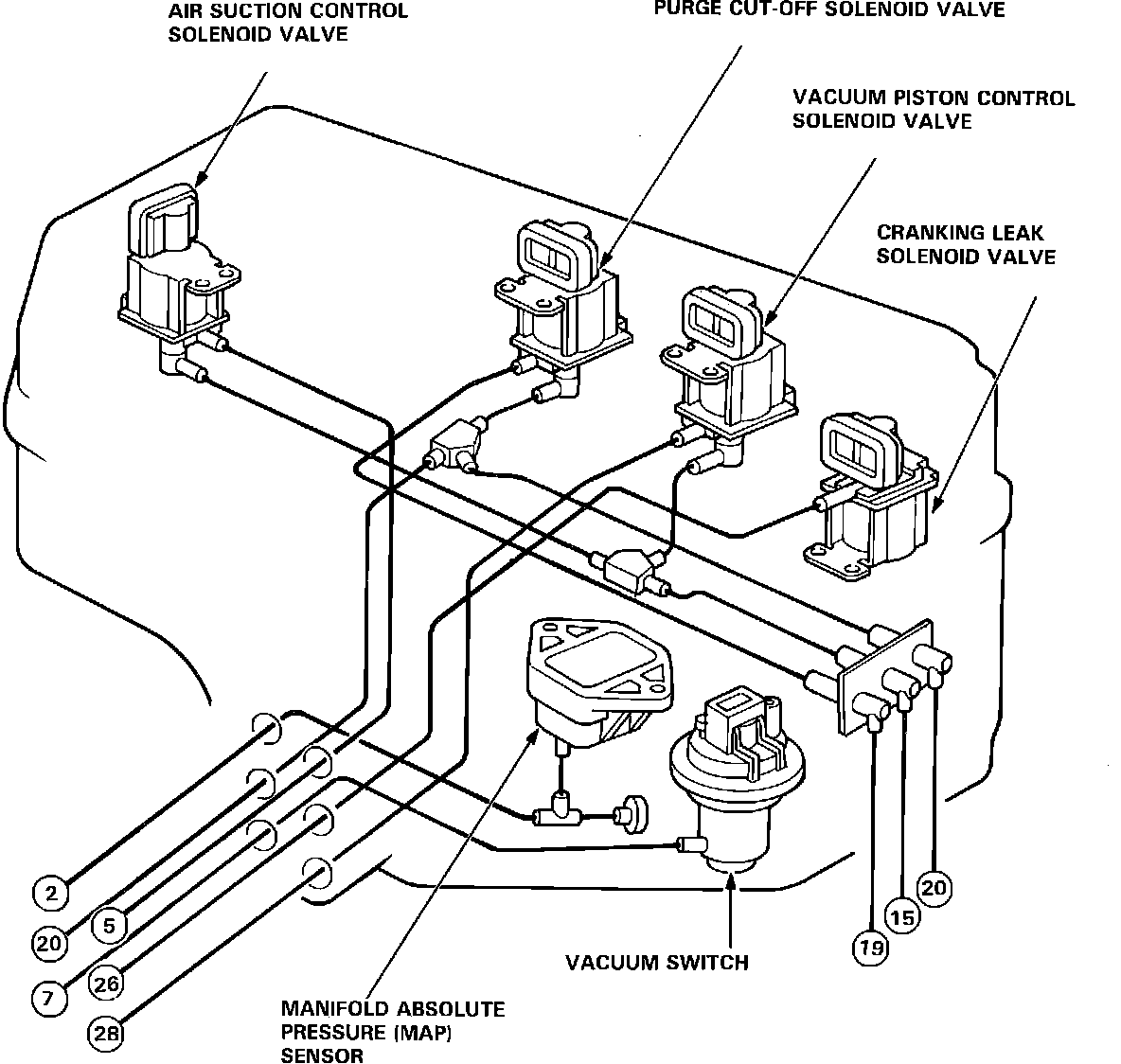

Fig. 9 Vacuum Control Box Components (Cal):
