Honda
>>
1987
>>
Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

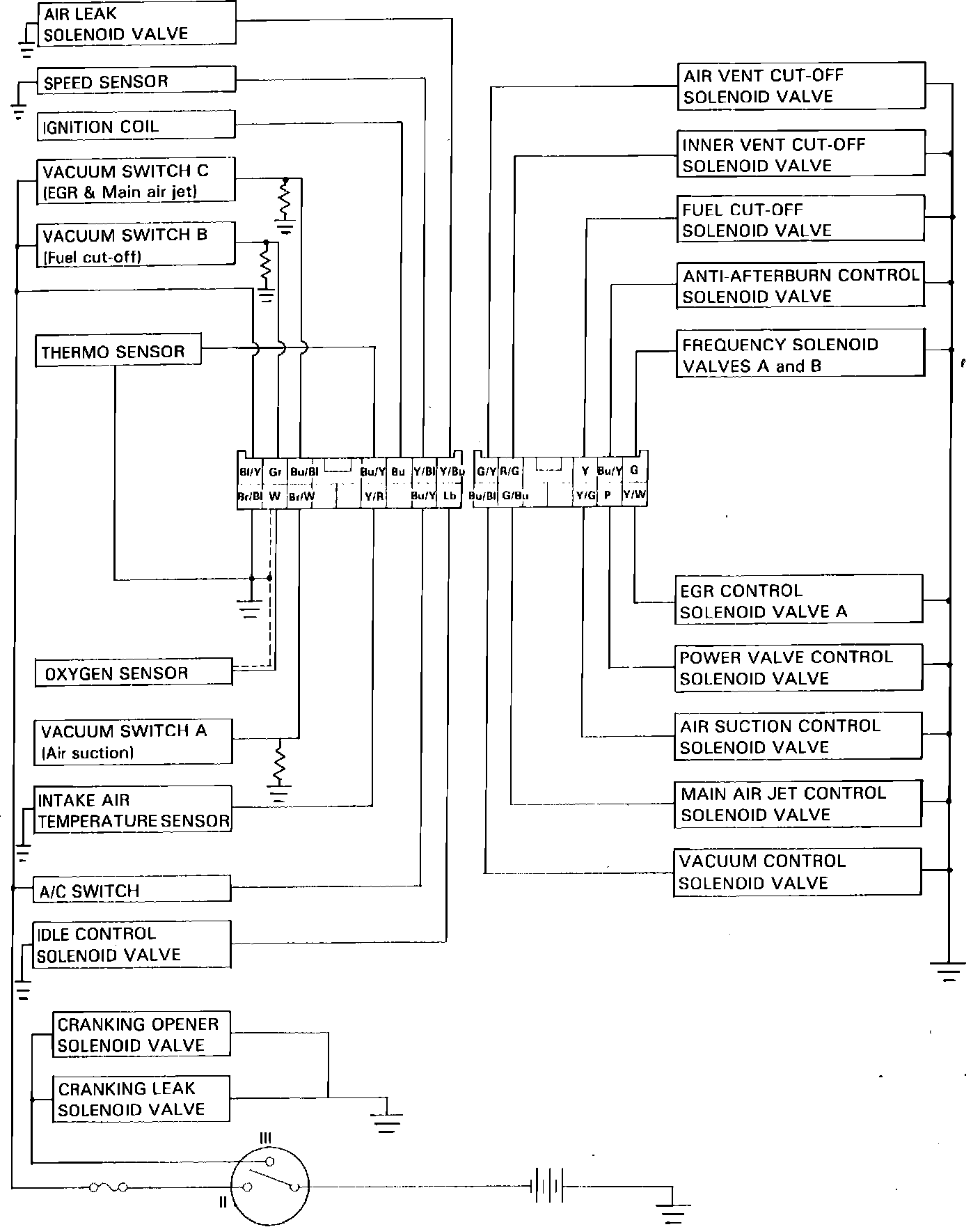

Fig. 251 Control Unit:
