Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Carburetor
Carburetor

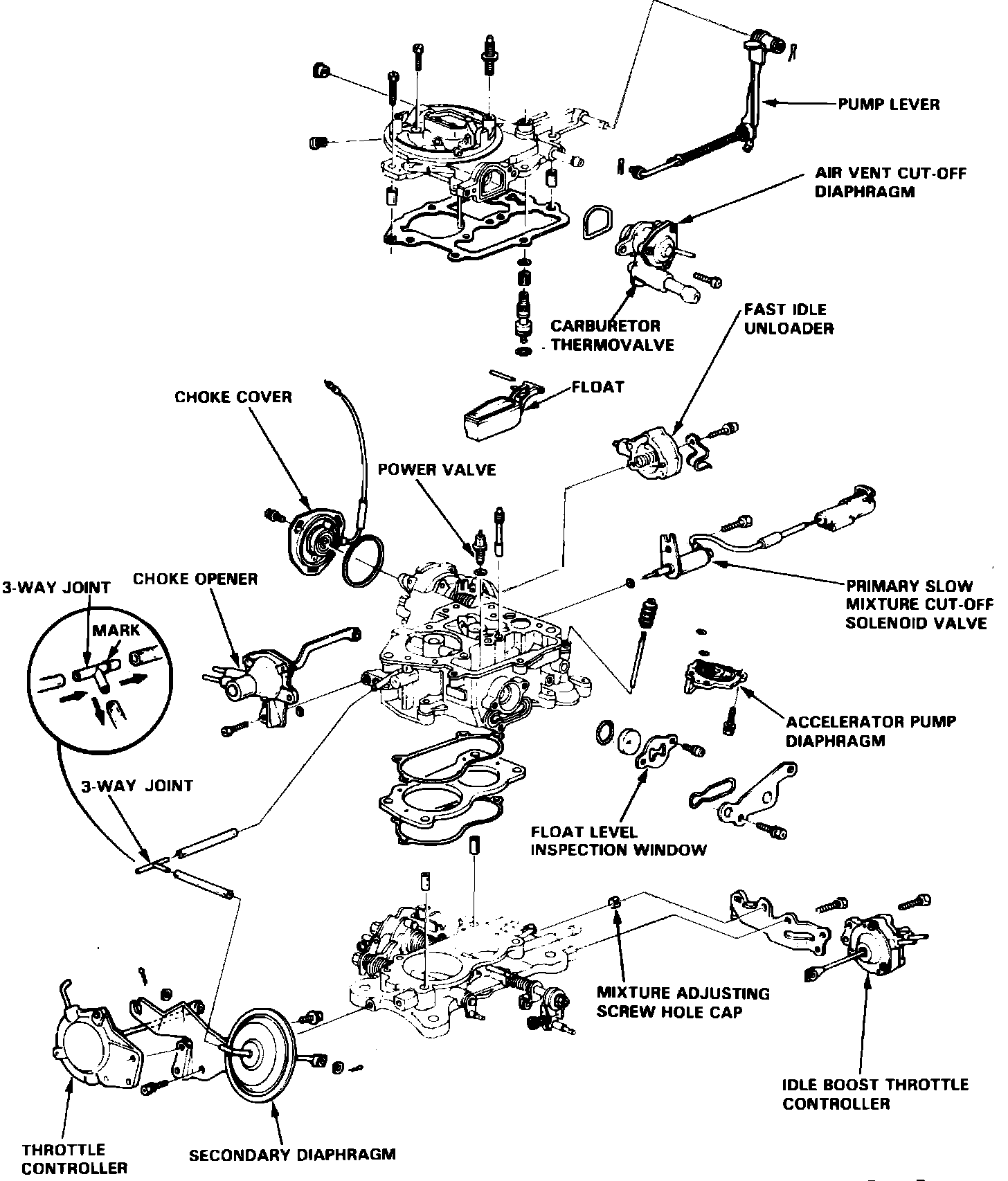

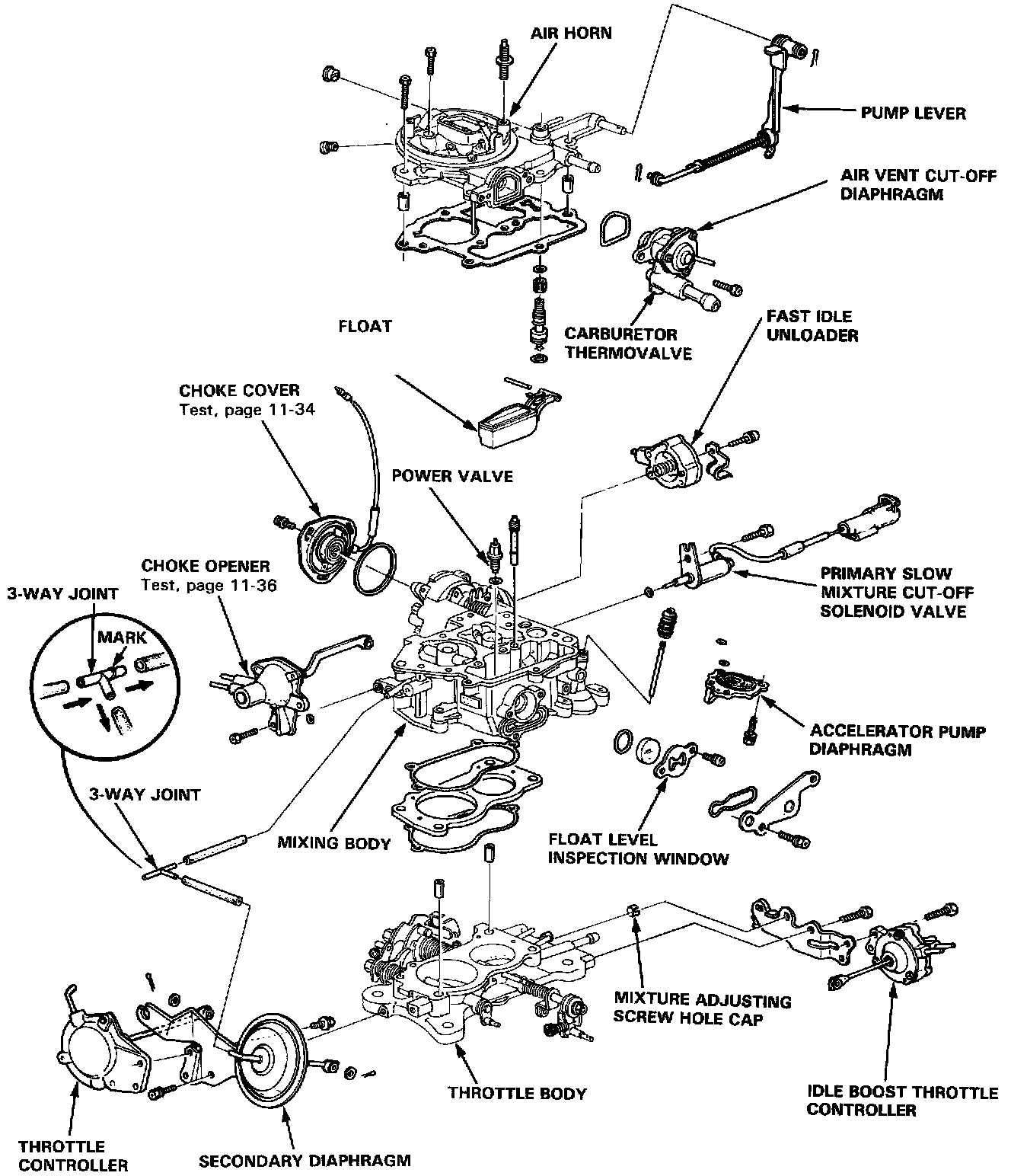

Fig. 2 Carburetor assembly exploded view.:
