Home
>>
Honda
>>
1985
>>
Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Control Module
Engine Control Module

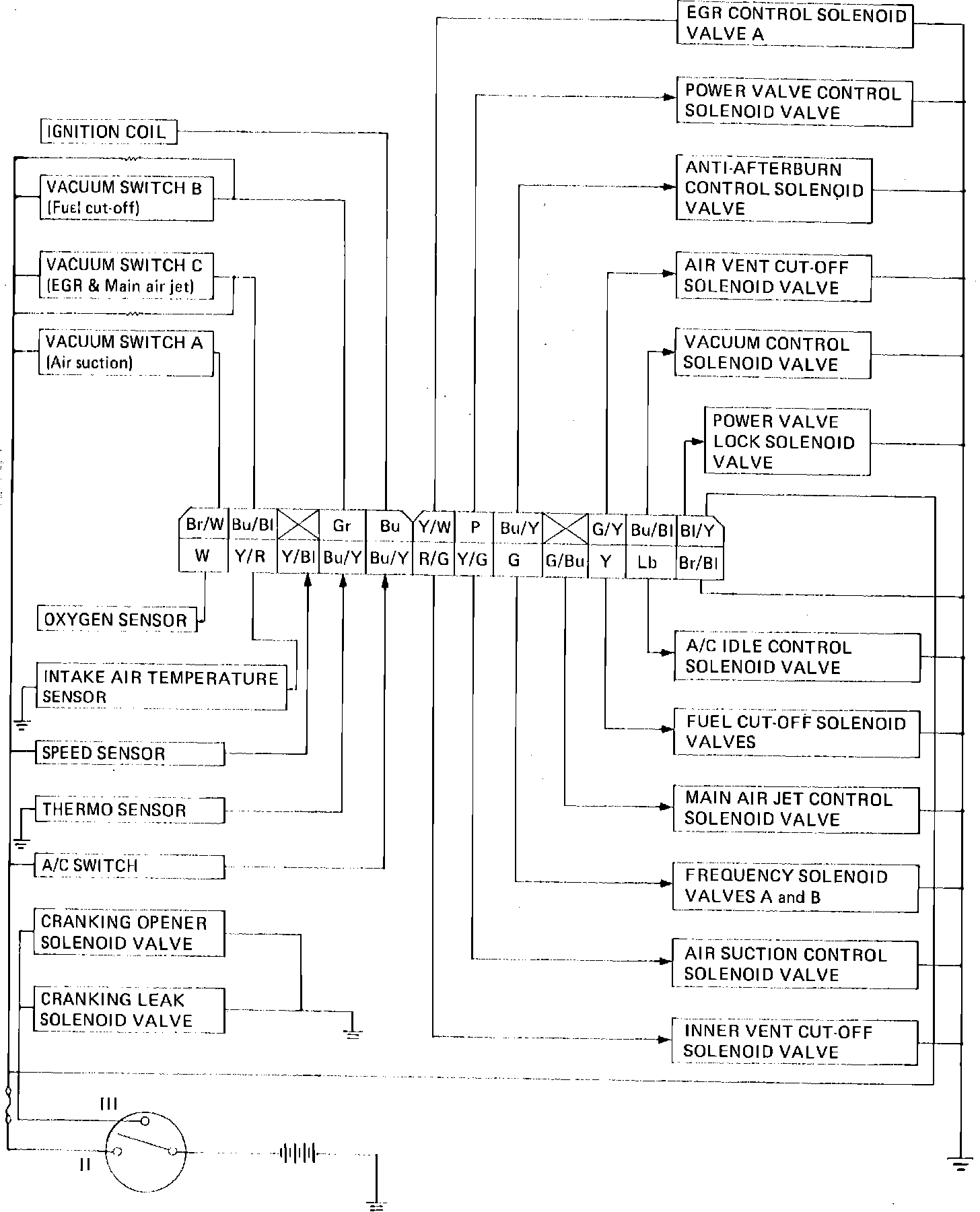

Fig. 215 Control Unit Terminal Location:
