Home
>>
Honda
>>
1984
>>
Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Routing
Routing

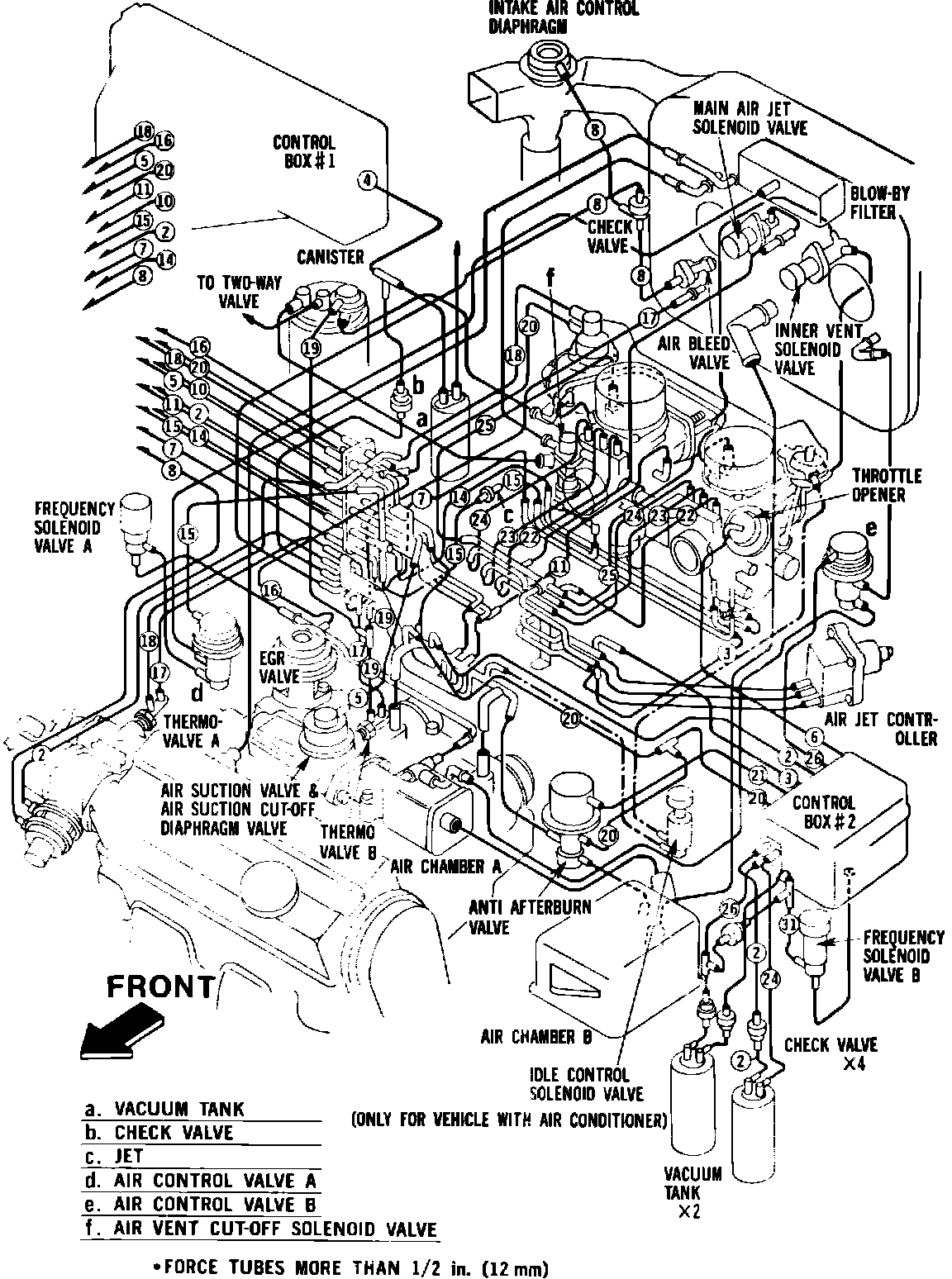

Fig. 118 Engine compartment reference diagram.:
