Main Relay (Computer/Fuel System)
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

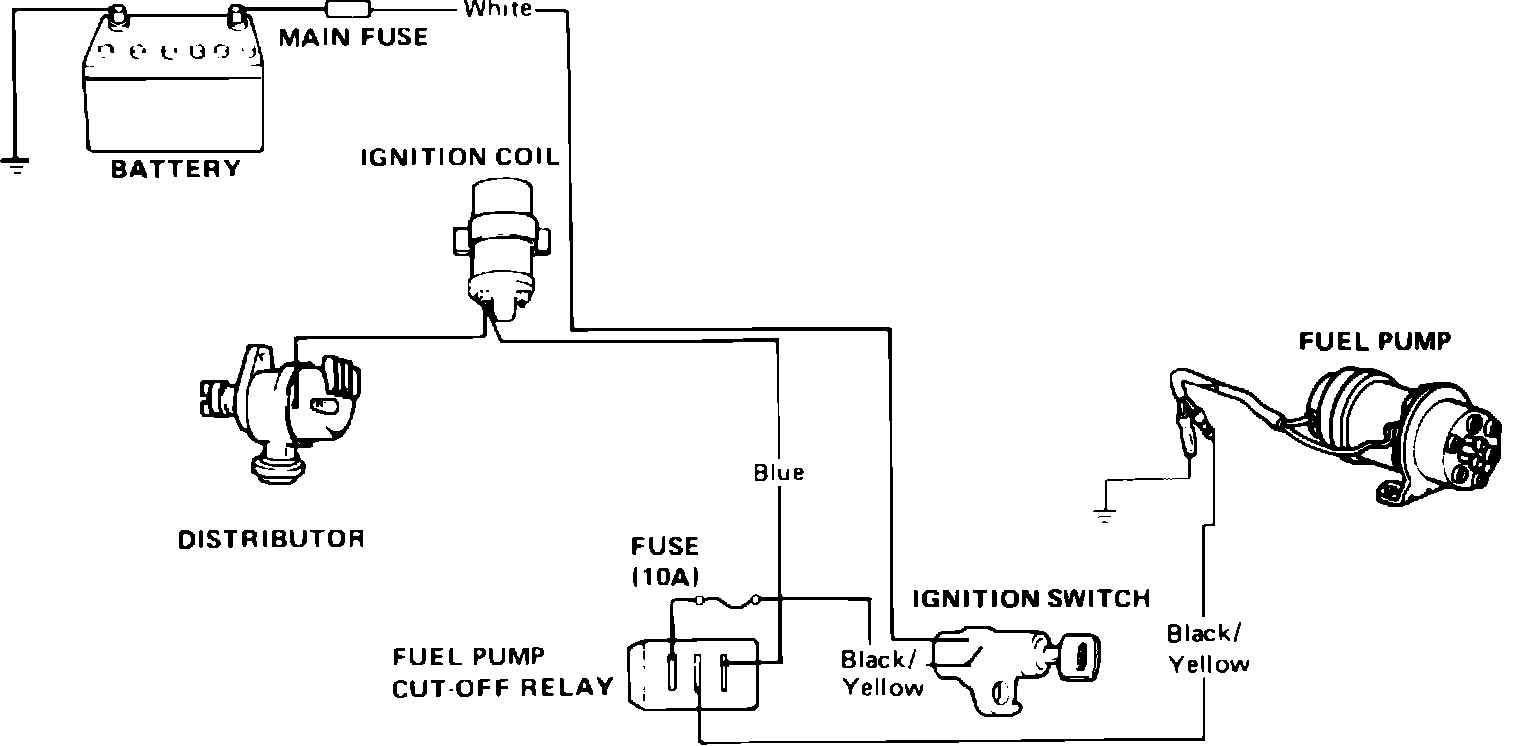

Fig. 107 Fuel Pump Cut-Off Wiring Circuit. 1983 Prelude:
