Distributor, Ignition
>>
Toyodenso
Toyodenso

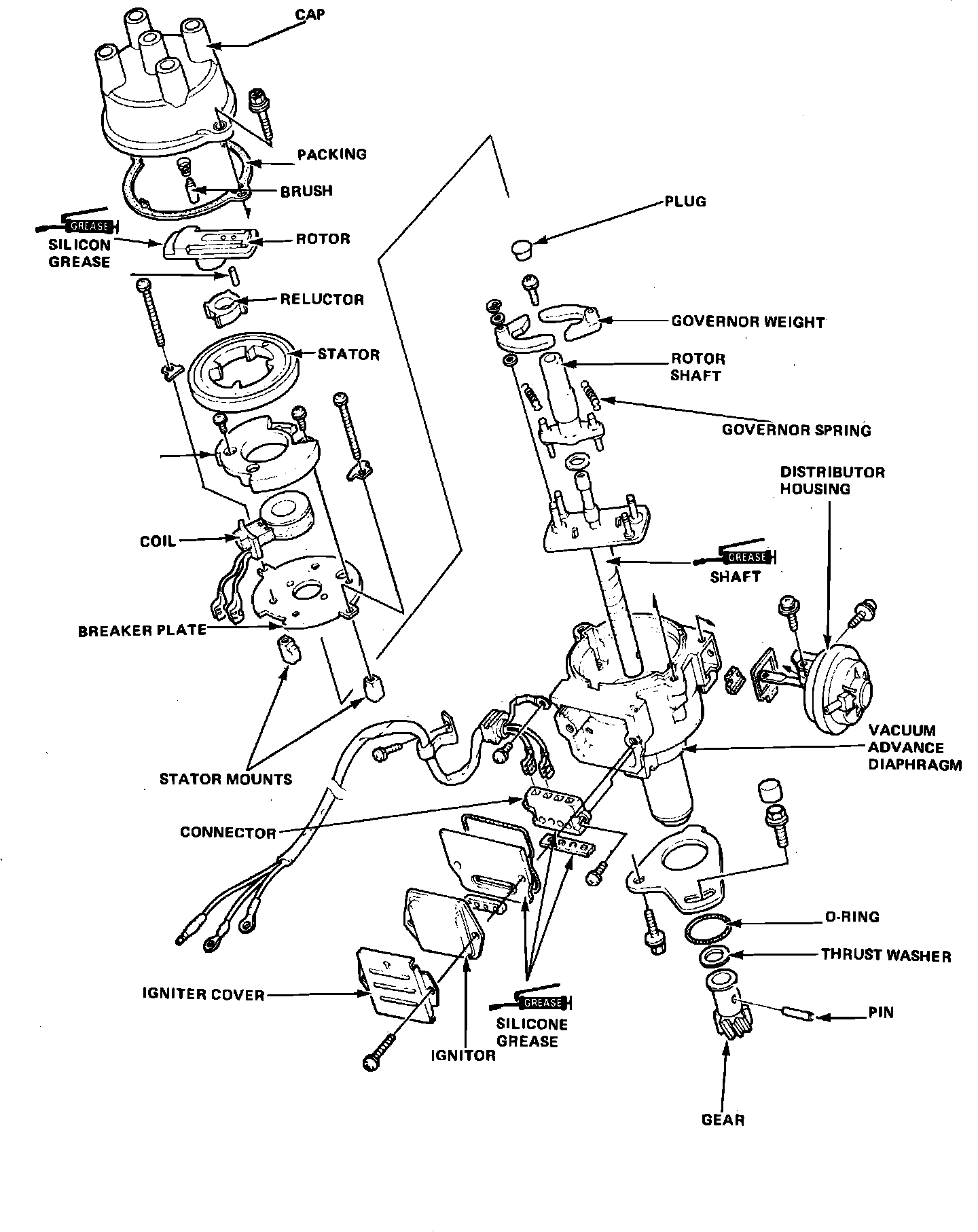

Fig. 44 Toyo Denso electronic distributor exploded view.:
