Honda Truck
>>
2012
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

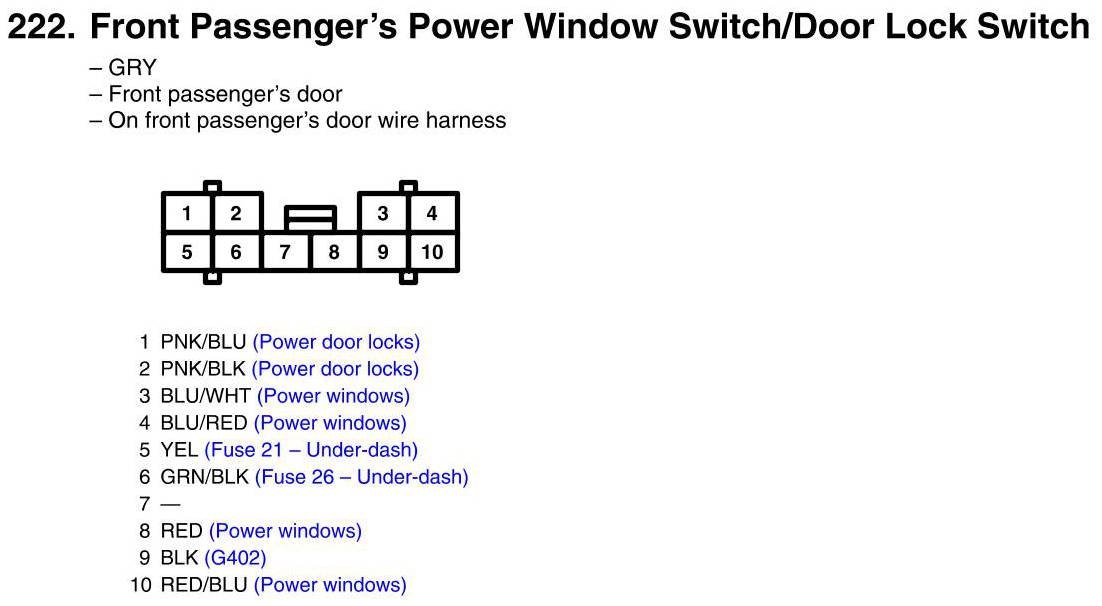

Front Passenger's Power Window Switch/Door Lock Switch Connector View
Front Passenger's Power Window Switch/Door Lock Switch Connector View
