Honda Truck
>>
2012
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

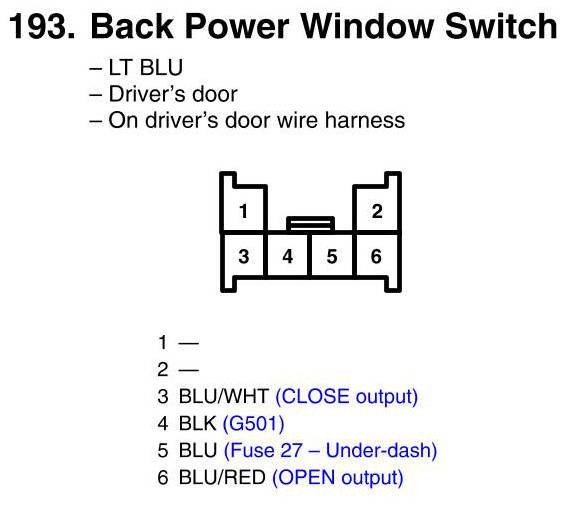

Back Power Window Switch Connector View
Back Power Window Switch Connector View
