Honda Truck
>>
2012
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

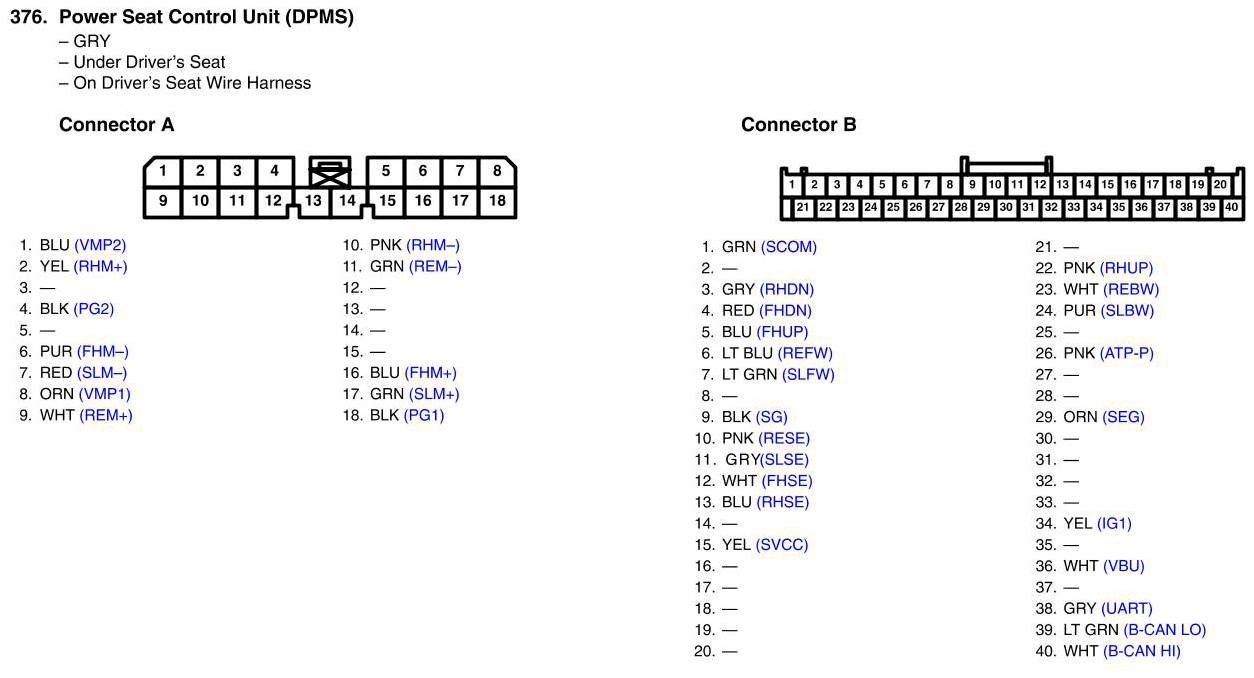

View 376 - Power Seat Control Unit Connector View (DPMS)
View 376 - Power Seat Control Unit Connector View (DPMS)
