Home
>>
Honda Truck
>>
2012
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate Switch
>>

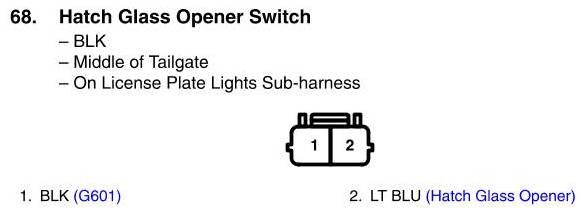

Hatch Glass Opener Switch Connector View
Hatch Glass Opener Switch Connector View
