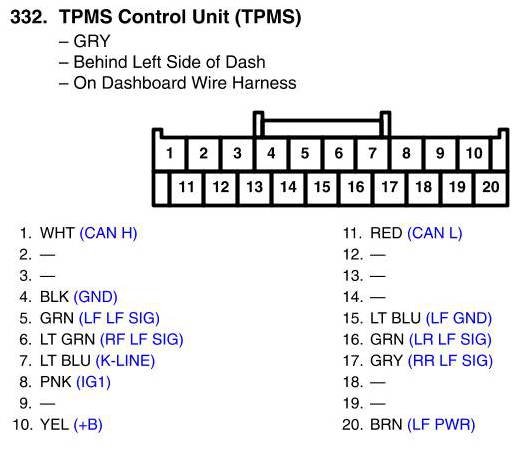

View 332 - TPMS Control Unit Connector View (TPMS)
View 332 - TPMS Control Unit Connector View (TPMS)
