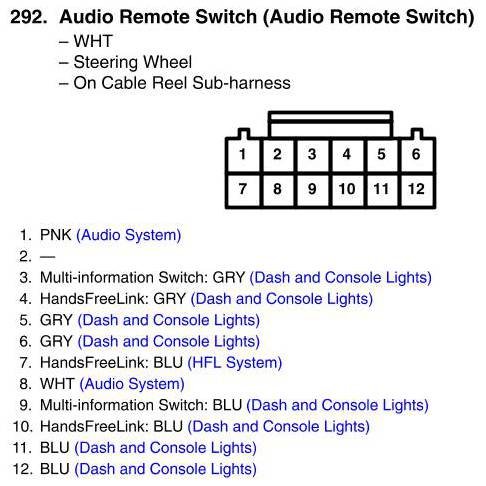

View 292 - Audio Remote Switch Connector View (Audio Remote Switch)
View 292 - Audio Remote Switch Connector View (Audio Remote Switch)
