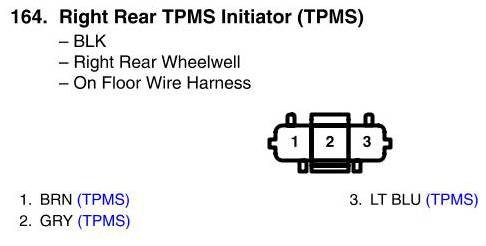

View 164 - Right Rear TPMS Initiator Connector View (TPMS)
View 164 - Right Rear TPMS Initiator Connector View (TPMS)
