Honda Truck
>>
2012
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

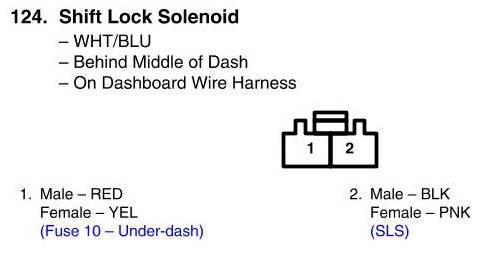

View 124 - Shift Lock Solenoid Connector View
View 124 - Shift Lock Solenoid Connector View
