Honda Truck
>>
2012
>>
Pilot 2WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

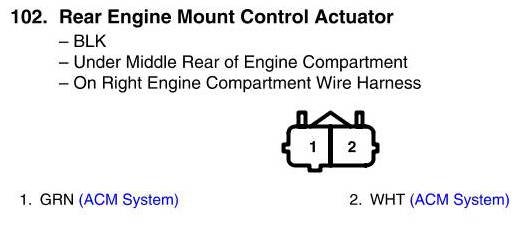

View 102 - Rear Engine Mount Control Actuator Connector View
View 102 - Rear Engine Mount Control Actuator Connector View
