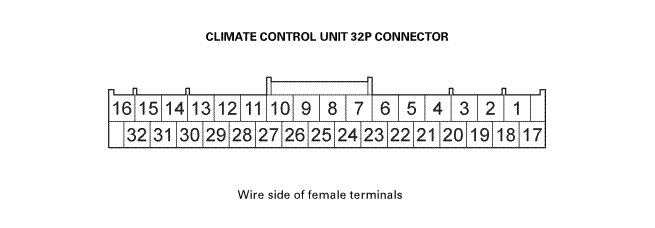

Climate Control Unit Connector for Inputs and Outputs




HVAC

Climate Control Unit Connector for Inputs and Outputs

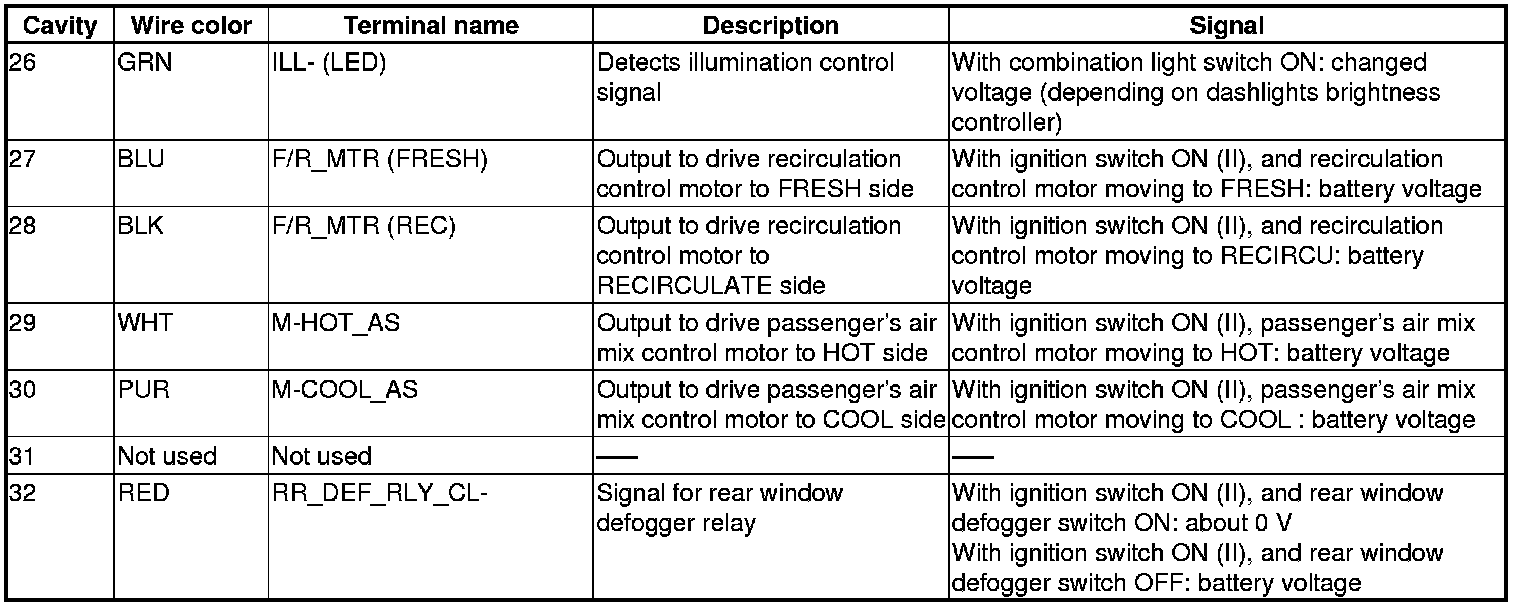

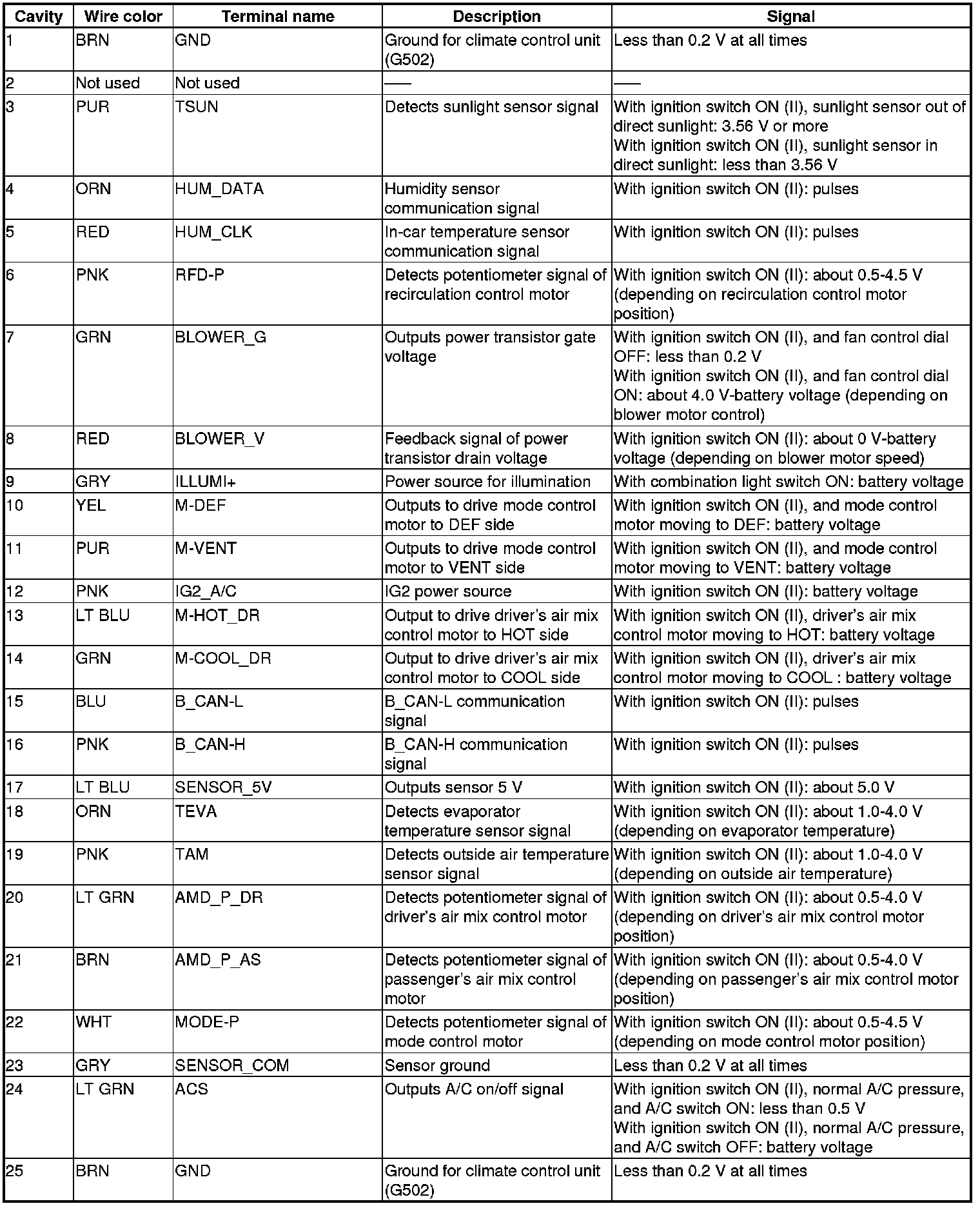

Climate Control Unit Inputs and Outputs
