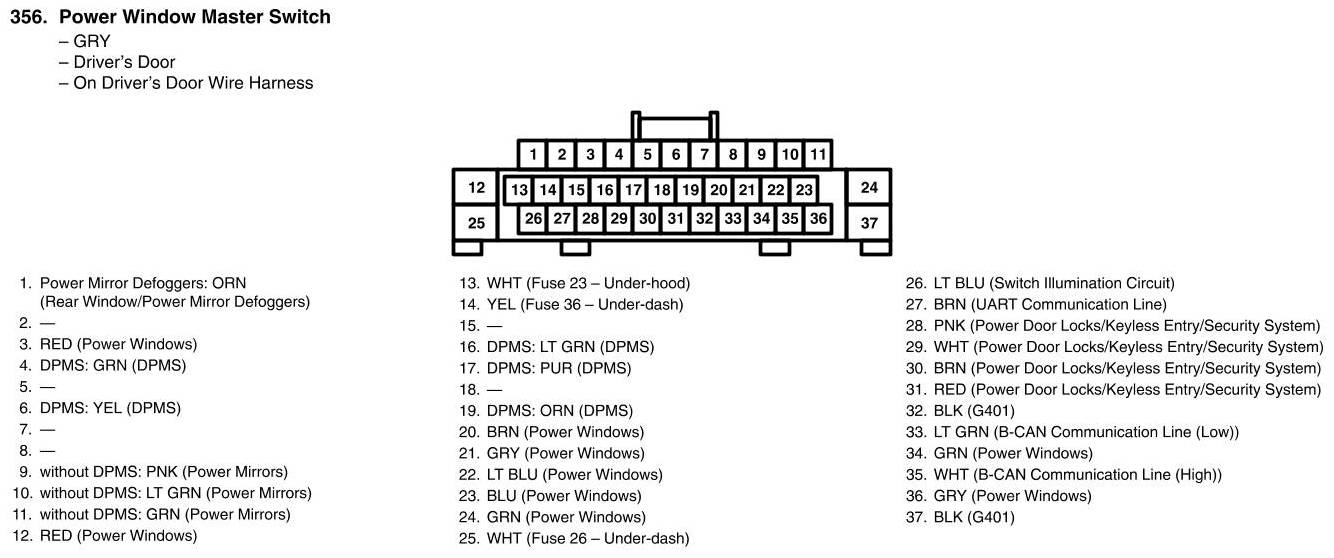

View 356 - Power Window Master Switch Connector View
View 356 - Power Window Master Switch Connector View
