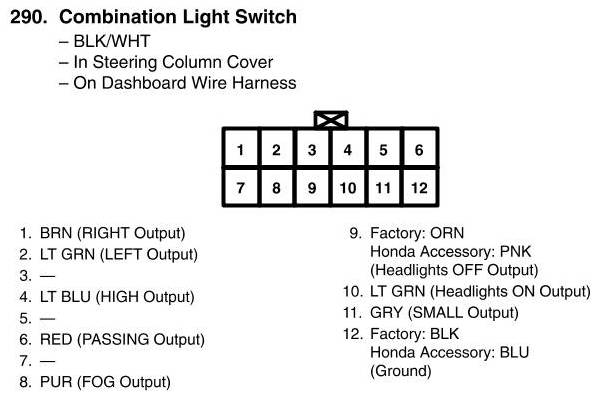

View 290 - Combination Light Switch Connector View
View 290 - Combination Light Switch Connector View
