Honda Truck
>>
2010
>>
Pilot 4WD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

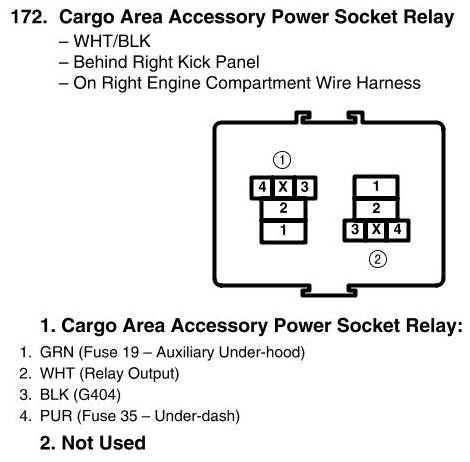

View 172 - Cargo Area Accessory Power Socket Relay Connector View
View 172 - Cargo Area Accessory Power Socket Relay Connector View
