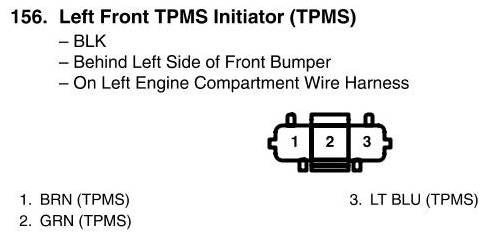

View 156 - Left Front TPMS Initiator Connector View (TPMS)
View 156 - Left Front TPMS Initiator Connector View (TPMS)
