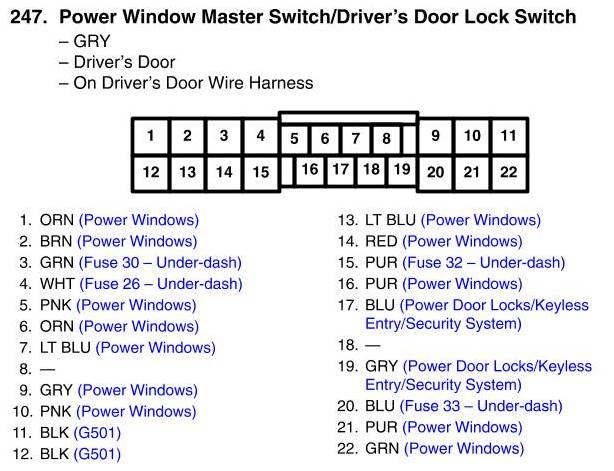

View 247 - Power Window Master Switch/Driver's Door Lock Switch Connector View
View 247 - Power Window Master Switch/Driver's Door Lock Switch Connector View
