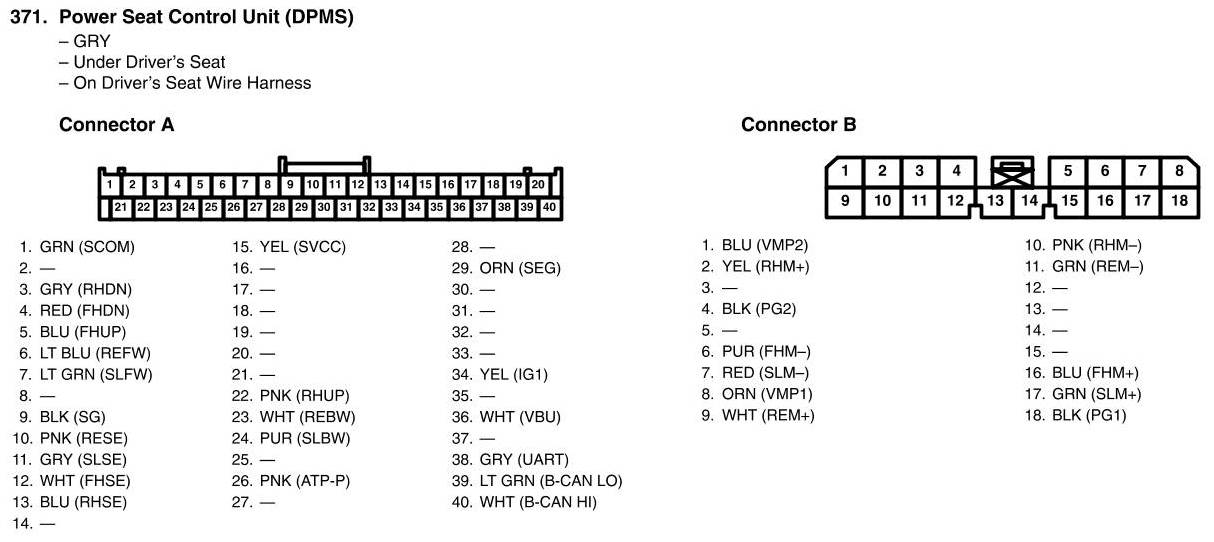

View 371 - Power Seat Control Unit Connector View (DPMS)
View 371 - Power Seat Control Unit Connector View (DPMS)
