Home >> Honda Truck >> 2009 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Timing Cover

Timing Cover

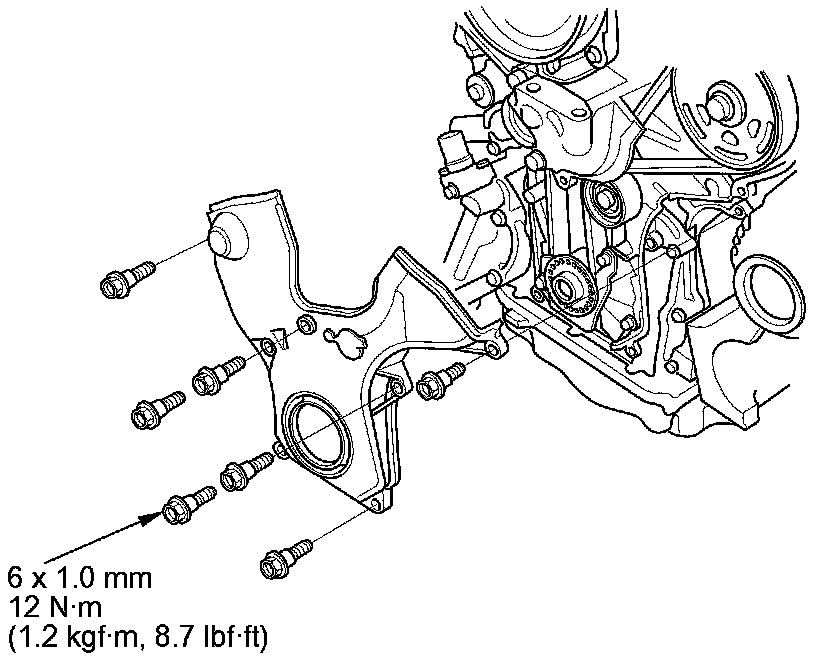

Lower cover

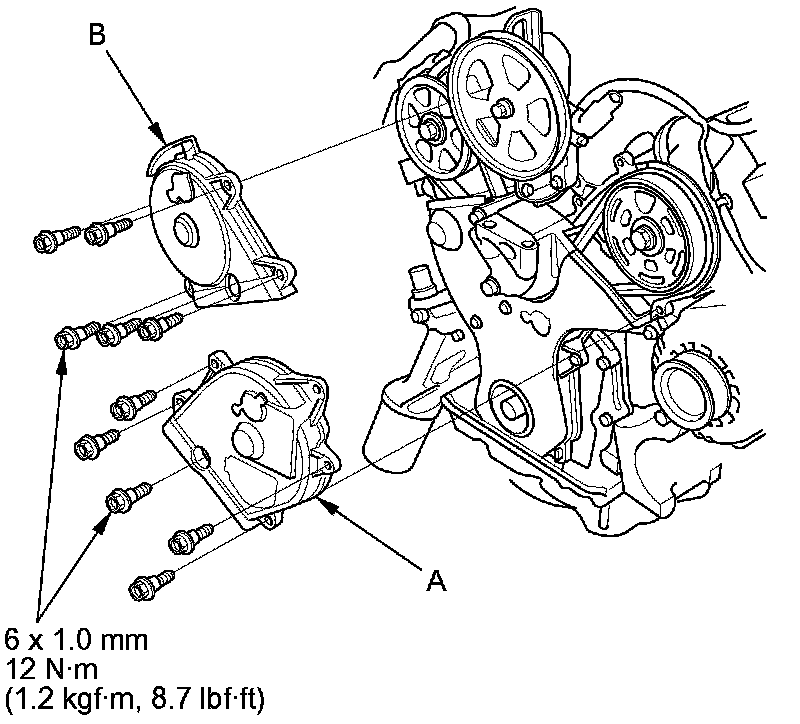

Upper covers
